SD52-151-R
ActiveEaton - Electronics Division
FIXED IND 150UH 310MA 1.61OHM SM
SD52-151-R
ActiveEaton - Electronics Division
FIXED IND 150UH 310MA 1.61OHM SM
Description
General part information
SD52-151-R

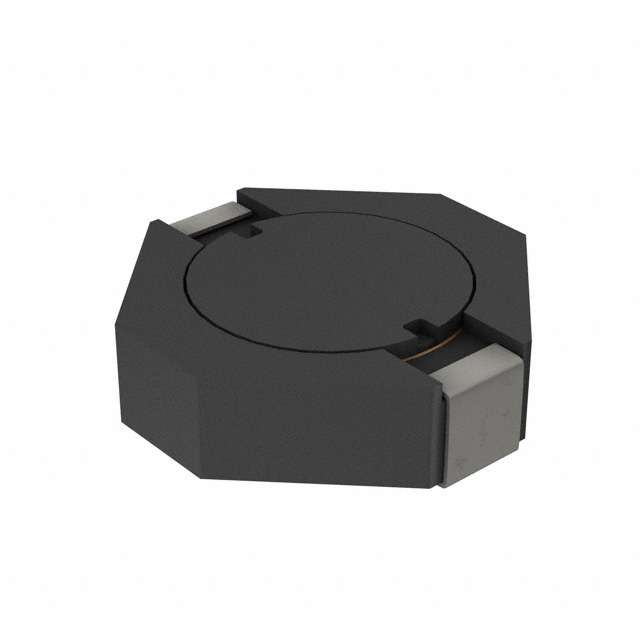

150 µH Shielded Drum Core, Wirewound Inductor 310 mA 1.61Ohm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SD52-151-R |
|---|---|
| Current - Saturation (Isat) | 0.28 mA |
| Current Rating | 0.31 A |
| DC Resistance (DCR) | 1.61 Ohm |
| Height - Seated (Max) | 0.079 in |
| Inductance | 150 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.205 in |
| Size / Dimension Width | 0.205 in |
| Tolerance | 20 % |
| Type | Drum Core, Wirewound |
