CA45LB6R3M227T
ActiveNextGen Components
CAP. TANT. 6.3V 220UF 20% 1210
CA45LB6R3M227T
ActiveNextGen Components
CAP. TANT. 6.3V 220UF 20% 1210
Description
General part information
CA45LB6R3M227T

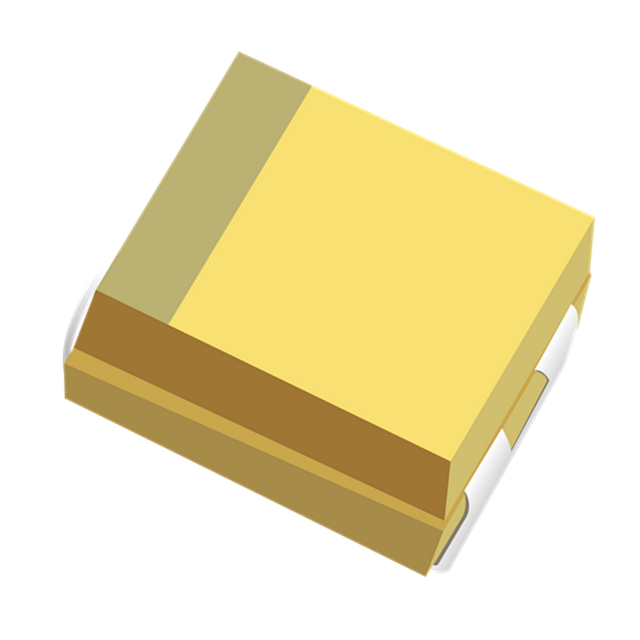

220 µF Molded Tantalum Capacitors 6.3 V 1210 (3528 Metric) 600mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | CA45LB6R3M227T |
|---|---|
| Capacitance | 220 µF |
| ESR (Equivalent Series Resistance) | 600 mOhm |
| Features | General Purpose |
| Height - Seated (Max) | 0.087 in |
| Manufacturer Size Code | B |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1210 (3528 Metric), 1411 (3528 Metric), 1210 |
| Size / Dimension Length | 0.138 in |
| Size / Dimension Width | 0.11 in |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 6.3 V |
