2308-6121-TG
Active3M

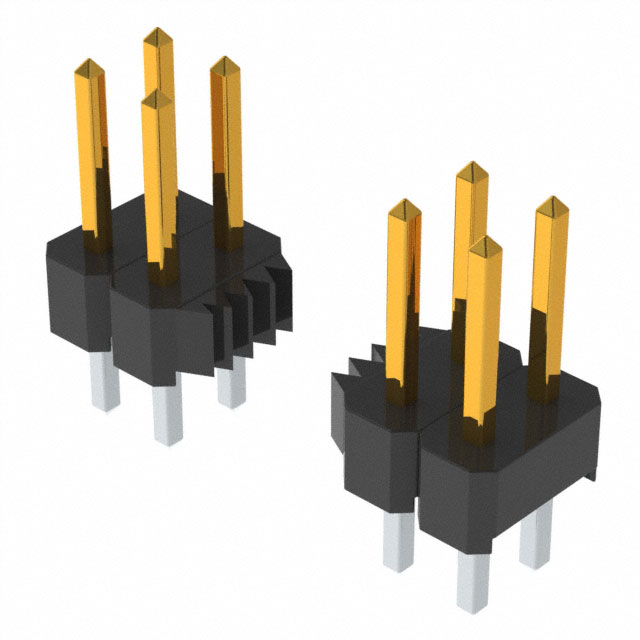

CONN HEADER VERT 8POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2308-6121-TG
Active3M
CONN HEADER VERT 8POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2308-6121-TG | 2308 Series |
|---|---|---|
| Adhesive | - | Rubber |
| Backing, Carrier | - | Crepe Paper |
| Color | - | Natural |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 10 çin | 10 - 30 çin |
| Contact Finish Thickness - Mating | 0.25 çm | 0.25 - 0.76 çm |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 5.84 mm | 5.84 mm |
| Contact Length - Mating [x] | 0.23 in | 0.23 in |
| Contact Length - Post [x] | 0.12 in | 0.12 in |
| Contact Length - Post [x] | 3.05 mm | 3.05 mm |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.1 in | 0.1 in |
| Insulation Height | 2.54 mm | 2.54 mm |
| Length | - | 60 yds |
| Length | - | 55 m |
| Length | - | 180 ft |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 8 | 8 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Overall Contact Length | 0.45 " | 0.45 " |
| Overall Contact Length | 11.43 mm | 11.43 mm |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shelf Life | - | 12 Months |
| Shelf Life Start | - | Date of Manufacture |
| Shrouding | Unshrouded | Unshrouded |
| Storage/Refrigeration Temperature | - | 70 °F |
| Storage/Refrigeration Temperature | - | 21 °C |
| Style | Board to Board, Cable | Board to Board, Cable |
| Tape Type | - | Masking |
| Termination | Solder | Solder |
| Thickness | - | 0.0053 " |
| Thickness | - | 0.135 mm |
| Thickness | - | 5.3 mils |
| Usage | - | Paint Masking |
| Width | - | 72 mm |
| Width | - | 2.83 " |
| Width | - | 0.47 - 1.42 in |
| Width | - | 12 - 36 mm |
2308 Series
TAPE MASKING NATURAL 2.83"X60YDS
| Part | Thickness | Thickness | Thickness | Tape Type | Adhesive | Shelf Life Start | Shelf Life | Width [y] | Width [y] | Usage | Backing, Carrier | Length | Length | Length | Storage/Refrigeration Temperature | Storage/Refrigeration Temperature | Color | Width [x] | Width [x] | Fastening Type | Termination | Contact Shape | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Height | Insulation Height | Insulation Color | Contact Type | Contact Length - Mating [x] | Contact Length - Mating | Style | Number of Rows | Number of Positions | Contact Finish - Post | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Material Flammability Rating | Overall Contact Length | Overall Contact Length | Shrouding | Contact Length - Post [x] | Contact Length - Post [x] | Connector Type | Contact Material | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.0053 " | 0.135 mm | 5.3 mils | Masking | Rubber | Date of Manufacture | 12 Months | 72 mm | 2.83 " | Paint Masking | Crepe Paper | 60 yds | 55 m | 180 ft | 70 °F | 21 °C | Natural | ||||||||||||||||||||||||||||||||||||||
0.0053 " | 0.135 mm | 5.3 mils | Masking | Rubber | Date of Manufacture | 12 Months | Paint Masking | Crepe Paper | 60 yds | 55 m | 180 ft | 70 °F | 21 °C | Natural | ||||||||||||||||||||||||||||||||||||||||
0.0053 " | 0.135 mm | 5.3 mils | Masking | Rubber | Date of Manufacture | 12 Months | Paint Masking | Crepe Paper | 60 yds | 55 m | 180 ft | 70 °F | 21 °C | Natural | 0.71 in | 18 mm | ||||||||||||||||||||||||||||||||||||||
Push-Pull | Solder | Square | 2.54 mm | 0.1 in | Through Hole | 10 çin | 0.25 çm | 0.1 in | 2.54 mm | Black | Male Pin | 0.23 in | 5.84 mm | Board to Board, Cable | 2 | 8 | Tin-Lead | All | 105 ░C | -55 °C | 0.1 in | 2.54 mm | 2.54 µm | 100 µin | Gold | UL94 V-0 | 0.45 " | 11.43 mm | Unshrouded | 0.12 in | 3.05 mm | Header | Copper Alloy | 3 A | ||||||||||||||||||||
0.0053 " | 0.135 mm | 5.3 mils | Masking | Rubber | Date of Manufacture | 12 Months | Paint Masking | Crepe Paper | 60 yds | 55 m | 180 ft | 70 °F | 21 °C | Natural | 1.42 in | 36 mm | ||||||||||||||||||||||||||||||||||||||
Push-Pull | Solder | Square | 2.54 mm | 0.1 in | Through Hole | 30 Áin | 0.76 Ám | 0.1 in | 2.54 mm | Black | Male Pin | 0.23 in | 5.84 mm | Board to Board, Cable | 2 | 8 | Tin-Lead | All | 105 ░C | -55 °C | 0.1 in | 2.54 mm | 2.54 µm | 100 µin | Gold | UL94 V-0 | 0.45 " | 11.43 mm | Unshrouded | 0.12 in | 3.05 mm | Header | Copper Alloy | 3 A | ||||||||||||||||||||
0.0053 " | 0.135 mm | 5.3 mils | Masking | Rubber | Date of Manufacture | 12 Months | Paint Masking | Crepe Paper | 60 yds | 55 m | 180 ft | 70 °F | 21 °C | Natural | 0.47 in | 12 mm |
