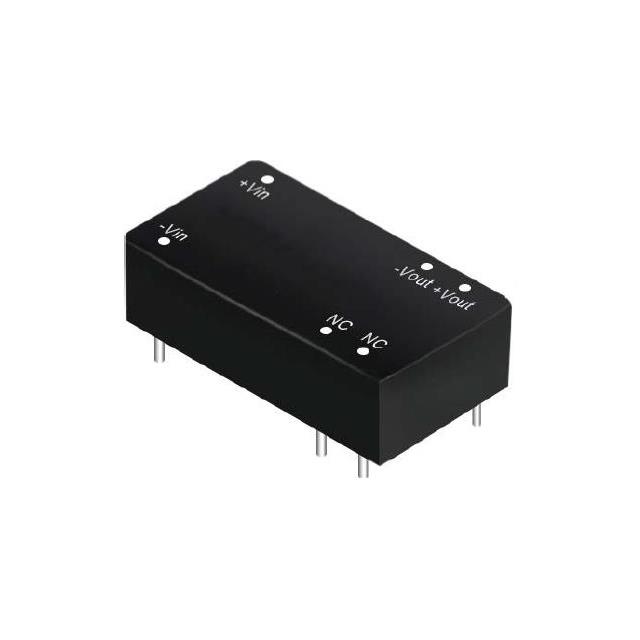

UC15-24D15
Isolated Module DC DC Converter 2 Output 15V -15V 500mA, 500mA 9V - 36V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | UC15-24D15 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 500 mA |
| Efficiency | 89 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 59.2 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 6 Leads |
| Package Name | 16-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension Height | 0.39 in |
| Size / Dimension Length | 0.94 in |
| Size / Dimension Width | 0.55 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 9 V |
| Voltage - Isolation | 1.6 kV |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
