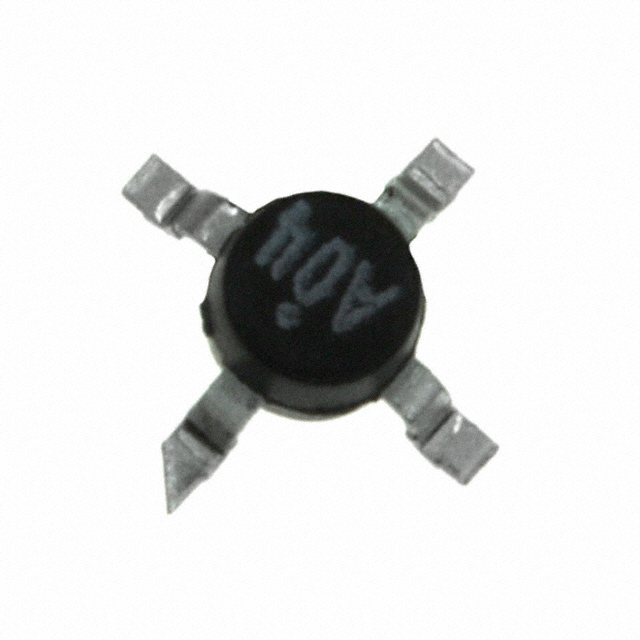

MSA-0486-BLKG
ObsoleteBroadcom Limited
IC AMP 0HZ-5GHZ 86 PLASTIC PKG
MSA-0486-BLKG
ObsoleteBroadcom Limited
IC AMP 0HZ-5GHZ 86 PLASTIC PKG
Description
General part information
MSA-0486-BLKG
RF Amplifier IC 0Hz ~ 5GHz 86 Plastic Package
Technical Specifications
Parameters and characteristics for this part
| Specification | MSA-0486-BLKG |
|---|---|
| Current - Supply | 85 mA |
| Frequency (Max) | 5 GHz |
| Frequency (Min) | 0 Hz |
| Gain (Max) | 8 dB |
| Gain (Min) | 7 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 7 dB |
| P1dB | 12.5 dBm |
| Package / Case | SOT-86 |
| Package Name | 86 Plastic Package |
| Test Frequency | 1 GHz |
| Voltage - Supply (Maximum) | 6.3 V |
| Voltage - Supply (Minimum) | 4.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
