BU-191930082
ActiveMueller Electric Co

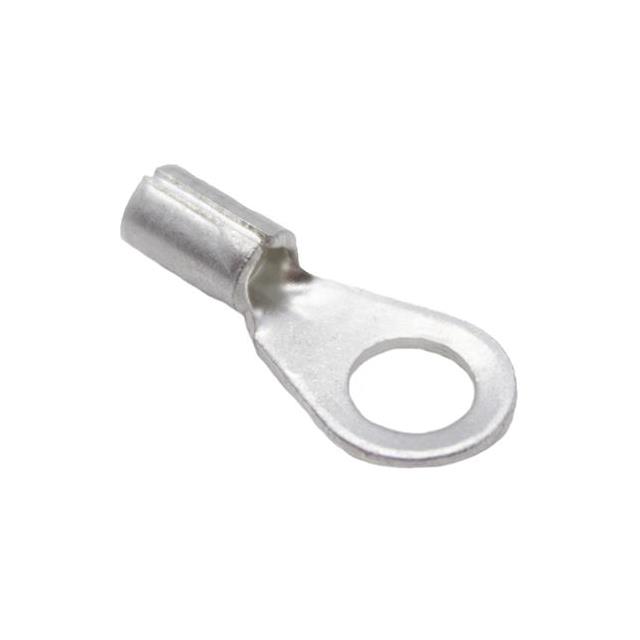

RING TONGUE TERMINAL, #10, 14 AWG
BU-191930082
ActiveMueller Electric Co
RING TONGUE TERMINAL, #10, 14 AWG
Description
General part information
BU-191930082
Ring Terminal Connector 10 Stud Circular 14-16 AWG Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-191930082 |
|---|---|
| Contact Finish | Electro-Tin |
| Contact Material | Copper Alloy |
| Insulation | Non-Insulated |
| Length - Overall | 0.71 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.03 in |
| Width - Outer Edges | 0.324 in |
| Wire Gauge (AWG) (Max) | 16 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
