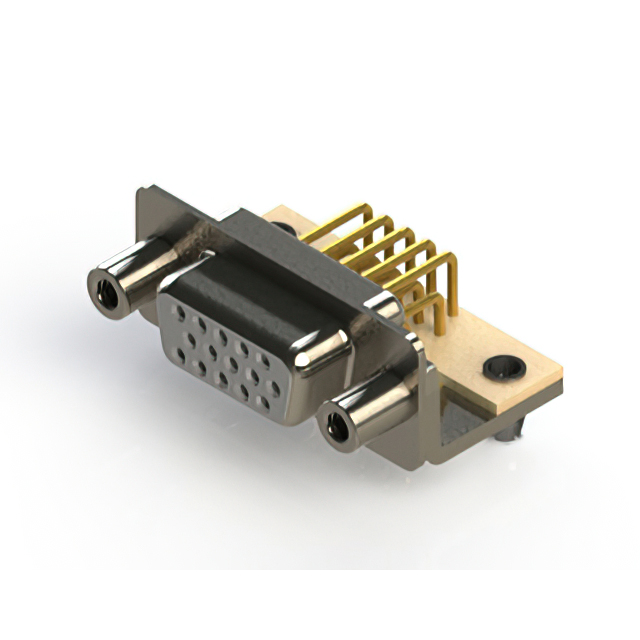

634-M15-663-WT5

Active

EDAC Inc.

HIGH DENSITY D-SUB CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

634-M15-663-WT5

Active

EDAC Inc.

HIGH DENSITY D-SUB CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	634-M15-663-WT5

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Color	White
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Features	Mounting Brackets, Shielded, Board Lock
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder

634-M15 Series

Part	Termination	Current Rating (Amps)	Flange Feature	Connector Style	Features	Connector Type	Contact Finish Thickness	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Backset Spacing	Backset Spacing	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Contact Type	Number of Positions	Contact Finish	Color	Material Flammability Rating	Mounting Type	Shell Material, Finish	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 634-M15-263-BT1	Solder	5 A	Housing/Shell (Unthreaded)	D-Sub High Density	Shielded	Receptacle Female Sockets	Flash	3	DE E	1	High Density	8.89 mm	0.35 in	Copper Alloy	-55 °C	125 °C	Polyamide (PA9T) Nylon 9T	Signal	15	Gold	Black	UL94 V-0	Board Edge Right Angle Through Hole
EDAC Inc. 634-M15-363-BN1	Solder	5 A	Housing/Shell (Unthreaded)	D-Sub High Density	Shielded	Receptacle Female Sockets		3	DE E	1	High Density	8.89 mm	0.35 in	Copper Alloy	-55 °C	125 °C	Polyamide (PA9T) Nylon 9T	Signal	15	Gold	Black	UL94 V-0	Board Edge Right Angle Through Hole	Nickel Plated Steel	15 µin	0.38 µm
EDAC Inc. 634-M15-663-BT6	Solder	5 A	4-40	D-Sub High Density	Mounting Brackets Shielded	Receptacle Female Sockets		3	DE E	1	High Density	8.89 mm	0.35 in	Copper Alloy	-55 °C	125 °C	Polyamide (PA9T) Nylon 9T	Signal	15	Gold	Black	UL94 V-0	Board Edge Right Angle Through Hole		30 Áin	0.76 Ám
EDAC Inc. 634-M15-363-WN5	Solder	5 A	4-40	D-Sub High Density	Board Lock Mounting Brackets Shielded	Receptacle Female Sockets		3	DE E	1	High Density	8.89 mm	0.35 in	Copper Alloy	-55 °C	125 °C	Polyamide (PA9T) Nylon 9T	Signal	15	Gold	White	UL94 V-0	Board Edge Right Angle Through Hole	Nickel Plated Steel	15 µin	0.38 µm
EDAC Inc. 634-M15-663-WN6	Solder	5 A	4-40	D-Sub High Density	Mounting Brackets Shielded	Receptacle Female Sockets		3	DE E	1	High Density	8.89 mm	0.35 in	Copper Alloy	-55 °C	125 °C	Polyamide (PA9T) Nylon 9T	Signal	15	Gold	White	UL94 V-0	Board Edge Right Angle Through Hole	Nickel Plated Steel	30 Áin	0.76 Ám
EDAC Inc. 634-M15-663-WT5	Solder	5 A	4-40	D-Sub High Density	Board Lock Mounting Brackets Shielded	Receptacle Female Sockets		3	DE E	1	High Density	8.89 mm	0.35 in	Copper Alloy	-55 °C	125 °C	Polyamide (PA9T) Nylon 9T	Signal	15	Gold	White	UL94 V-0	Board Edge Right Angle Through Hole		30 Áin	0.76 Ám
EDAC Inc. 634-M15-263-BN3	Solder	5 A	Housing/Shell (4-40)	D-Sub High Density	Board Lock Mounting Brackets Shielded	Receptacle Female Sockets	Flash	3	DE E	1	High Density	8.89 mm	0.35 in	Copper Alloy	-55 °C	125 °C	Polyamide (PA9T) Nylon 9T	Signal	15	Gold	Black	UL94 V-0	Board Edge Right Angle Through Hole	Nickel Plated Steel
EDAC Inc. 634-M15-263-WN3	Solder	5 A	Housing/Shell (4-40)	D-Sub High Density	Board Lock Mounting Brackets Shielded	Receptacle Female Sockets	Flash	3	DE E	1	High Density	8.89 mm	0.35 in	Copper Alloy	-55 °C	125 °C	Polyamide (PA9T) Nylon 9T	Signal	15	Gold	White	UL94 V-0	Board Edge Right Angle Through Hole	Nickel Plated Steel
EDAC Inc. 634-M15-263-WN1	Solder	5 A	Housing/Shell (Unthreaded)	D-Sub High Density	Shielded	Receptacle Female Sockets	Flash	3	DE E	1	High Density	8.89 mm	0.35 in	Copper Alloy	-55 °C	125 °C	Polyamide (PA9T) Nylon 9T	Signal	15	Gold	White	UL94 V-0	Board Edge Right Angle Through Hole	Nickel Plated Steel
EDAC Inc. 634-M15-663-BT1	Solder	5 A	Housing/Shell (Unthreaded)	D-Sub High Density	Shielded	Receptacle Female Sockets		3	DE E	1	High Density	8.89 mm	0.35 in	Copper Alloy	-55 °C	125 °C	Polyamide (PA9T) Nylon 9T	Signal	15	Gold	Black	UL94 V-0	Board Edge Right Angle Through Hole		30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 10.54
Newark	Each	1	$ 9.89
		750	$ 9.52
		1000	$ 9.18
		2500	$ 8.87
		5000	$ 8.57

Description

General part information

634-M15 Series

15 Position D-Sub, High Density Receptacle, Female Sockets Connector
