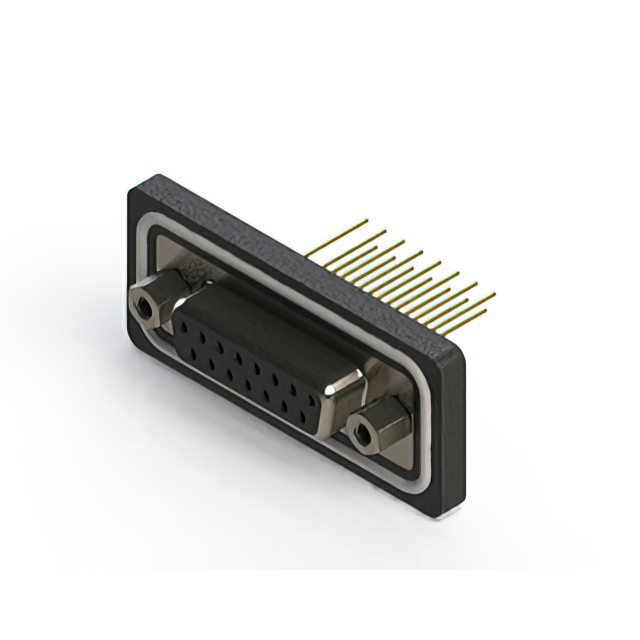

628-W15-321-012

Active

EDAC Inc.

CONN D-SUB RCPT 15POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

628-W15-321-012

Active

EDAC Inc.

CONN D-SUB RCPT 15POS VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-W15-321-012

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	4-40
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Solder

628-W15 Series

Part	Connector Style	Shell Material, Finish	Dielectric Material	Number of Rows	Shell Size, Connector Layout	Contact Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Contact Finish	Current Rating (Amps)	Contact Type	Material Flammability Rating	Color	Flange Feature	Number of Positions	Contact Finish Thickness	Connector Type	Termination	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 628-W15-222-012	D-Sub	Nickel Plated Steel	Polybutylene Terephthalate (PBT) Glass Filled	2	2	Copper Alloy	Free Hanging (In-Line)	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Gold	5 A	Signal and Power	UL94 V-0	Black	4-40	15	Flash	Receptacle Female Sockets
EDAC Inc. 628-W15-220-013	D-Sub	Nickel Plated Steel	Polybutylene Terephthalate (PBT) Glass Filled	2	2	Copper Alloy	Through Hole	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Gold	5 A	Signal and Power	UL94 V-0	Black	4-40	15	Flash	Receptacle Female Sockets	Solder
EDAC Inc. 628-W15-622-012	D-Sub	Nickel Plated Steel	Polybutylene Terephthalate (PBT) Glass Filled	2	2	Copper Alloy	Free Hanging (In-Line)	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Gold	5 A	Signal and Power	UL94 V-0	Black	4-40	15		Receptacle Female Sockets		0.76 Ám	30 Áin
EDAC Inc. 628-W15-322-012	D-Sub	Nickel Plated Steel	Polybutylene Terephthalate (PBT) Glass Filled	2	2	Copper Alloy	Free Hanging (In-Line)	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Gold	5 A	Signal and Power	UL94 V-0	Black	4-40	15		Receptacle Female Sockets		0.38 µm	15 µin
EDAC Inc. 628-W15-321-012	D-Sub	Nickel Plated Steel	Polybutylene Terephthalate (PBT) Glass Filled	2	2	Copper Alloy	Through Hole	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Gold	5 A	Signal and Power	UL94 V-0	Black	4-40	15		Receptacle Female Sockets	Solder	0.38 µm	15 µin
EDAC Inc. 628-W15-320-013	D-Sub	Nickel Plated Steel	Polybutylene Terephthalate (PBT) Glass Filled	2	2	Copper Alloy	Through Hole	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Gold	5 A	Signal and Power	UL94 V-0	Black	4-40	15		Receptacle Female Sockets	Solder	0.38 µm	15 µin
EDAC Inc. 628-W15-220-012	D-Sub	Nickel Plated Steel	Polybutylene Terephthalate (PBT) Glass Filled	2	2	Copper Alloy	Through Hole	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Gold	5 A	Signal and Power	UL94 V-0	Black	4-40	15	Flash	Receptacle Female Sockets	Solder
EDAC Inc. 628-W15-620-013	D-Sub	Nickel Plated Steel	Polybutylene Terephthalate (PBT) Glass Filled	2	2	Copper Alloy	Through Hole	-25 °C	85 °C	IP67 - Dust Tight Waterproof	Gold	5 A	Signal and Power	UL94 V-0	Black	4-40	15		Receptacle Female Sockets	Solder	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 18.65

Description

General part information

628-W15 Series

15 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources
