19031047A
ObsoleteComair Rotron
FAN BLOWER 124.7X36MM 12V VK12B3
19031047A
ObsoleteComair Rotron
FAN BLOWER 124.7X36MM 12V VK12B3
Description
General part information
19031047A

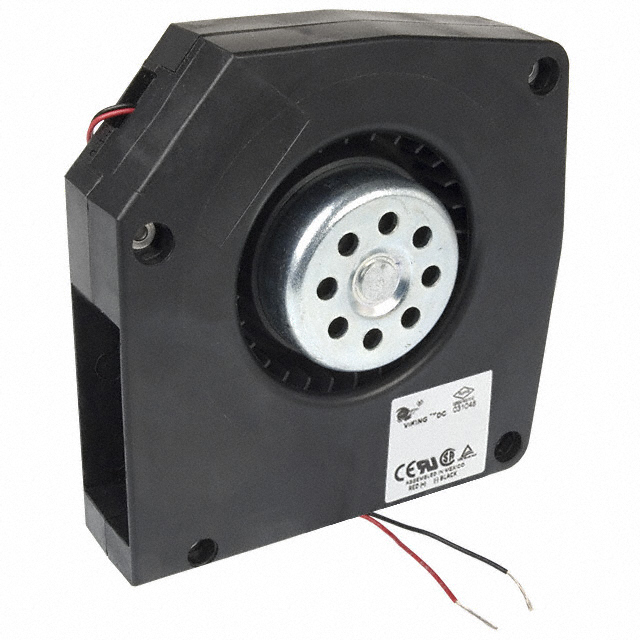

Fan Blower 12VDC Rectangular/Rounded - 124.7mm L x 126.2mm H Ball 33.0 CFM (0.924m³/min) 2 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | 19031047A |
|---|---|
| Air Flow | 33 CFM |
| Bearing Type | Ball |
| Current Rating | 1.34 A |
| Fan Type | Blower |
| Noise | 57.6 dB |
| Power (Watts) | 16 W |
| RPM | 3925 RPM |
| Size / Dimension Height | 126.2 mm |
| Size / Dimension Length | 124.7 mm |
| Size / Dimension Shape | Rectangular/Rounded |
| Static Pressure | 1.1 in H2O |
| Termination | 2 Wire Leads |
| Termination Leads Count | 2 leads |
| Termination Type | Wire Leads |
| Voltage - Rated | 12 VAC |
| Voltage Range (Max) | 14 V |
| Voltage Range (Min) | 6 VDC |
| Weight | 0.994 lb |
| Width | 36 mm |
