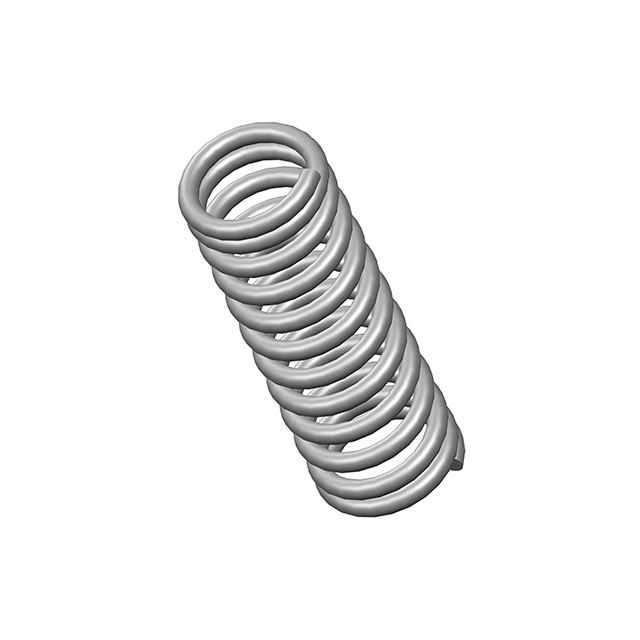

V-41CS
ActiveCentury Spring Corp
COMP O= .140,L= .44,W= .019
V-41CS
ActiveCentury Spring Corp
COMP O= .140,L= .44,W= .019
Description
General part information
V-41CS
COMP O= .140,L= .44,W= .019
Technical Specifications
Parameters and characteristics for this part
| Specification | V-41CS |
|---|---|
| Diameter - Inside | 0.102 in |
| Diameter - Outside | 0.14 in |
| End Style | Closed |
| Finish | None |
| Free Length | 0.44 in |
| Material | Music Wire |
| Rate (lbs/in) | 11 lbs/in |
| Type | Compression |
| Wire Diameter | 0.019 in |
