XDMDK09A3

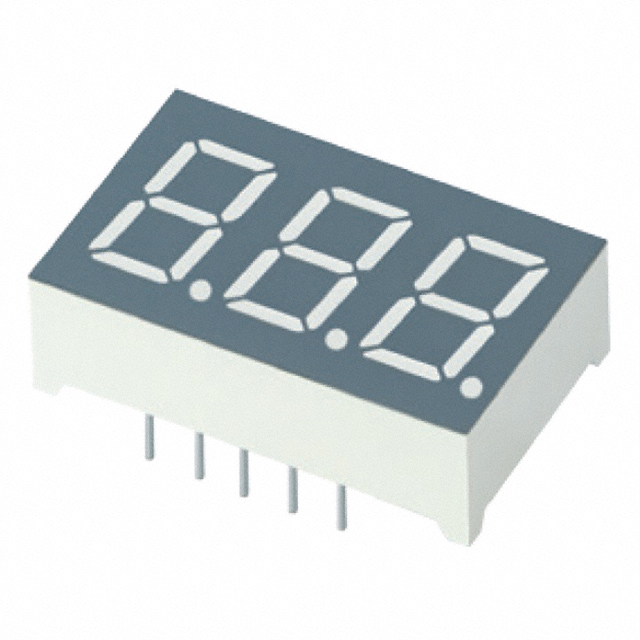

Display Modules - LED Character and Numeric Red 7-Segment 3 Character Common Anode 1.85V 10mA 0.551" H x 0.886" W x 0.283" D (14.00mm x 22.50mm x 7.20mm) 12-DIP (0.400", 10.16mm), 11 Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | XDMDK09A3 |
|---|---|
| Color | Red |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 0.36 in |
| Display Type | 7-Segment |
| Leads | 11 |
| Millicandela Rating | 61.99 mcd |
| Number of Characters | 3 characters |
| Package Leads | 11 Leads |
| Package Length | 10.16 mm |
| Package Name | 12-DIP |
| Package Pitch | 0.4 in |
| Power Dissipation (Max) | 75 mw |
| Size / Dimension Depth | 0.283 in |
| Size / Dimension Height | 0.551 in |
| Size / Dimension Width | 0.886 in |
| Voltage - Forward (Vf) (Typ) | 1.85 V |
| Wavelength - Peak | 645 nm |
