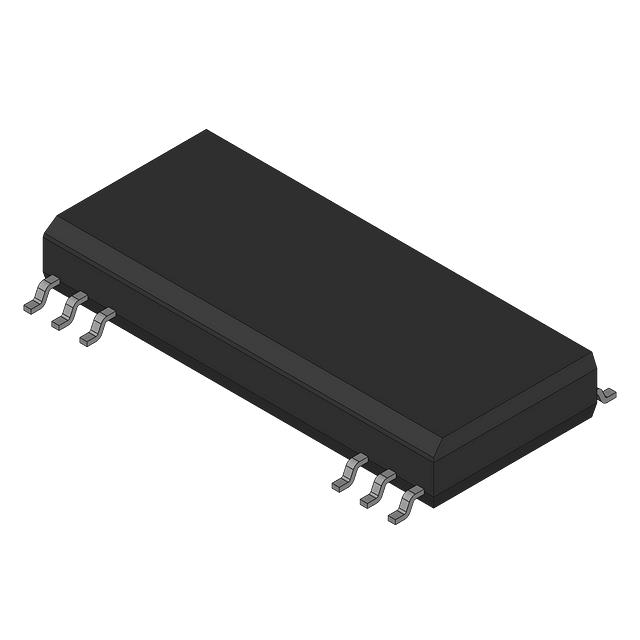

LV5990M-TLM-H
ObsoleteSanyo
IC REG BUCK ADJ 3A MFP12SJ
Deep-Dive with AI
Search across all available documentation for this part.
LV5990M-TLM-H
ObsoleteSanyo
IC REG BUCK ADJ 3A MFP12SJ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LV5990M-TLM-H |
|---|---|
| Current - Output | 3 A |
| Frequency - Switching | 360 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 0.173 in, 4.4 mm |
| Package / Case | 12-LSOP |
| Supplier Device Package | MFP12SJ |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Max) [Max] | 18 V |
| Voltage - Output (Min/Fixed) | 1.26 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 260 | $ 1.15 | |
Description
General part information
LV5990M-TLM-H
Buck Switching Regulator IC Positive Adjustable 1.26V 1 Output 3A 12-LSOP (0.173", 4.40mm Width)
Documents
Technical documentation and resources
No documents available
