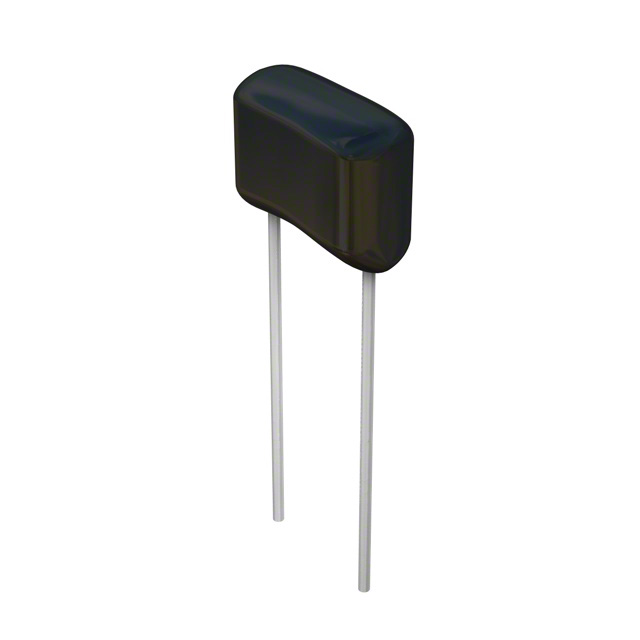

DMT6S47K-F
ActiveCornell Dubilier Knowles
CAP FILM 0.047UF 10% 630VDC RAD
DMT6S47K-F
ActiveCornell Dubilier Knowles
CAP FILM 0.047UF 10% 630VDC RAD
Description
General part information
DMT6S47K-F
0.047 µF Film Capacitor 250V 630V Polyester Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | DMT6S47K-F |
|---|---|
| Applications | General Purpose |
| Capacitance | 47 nF |
| Dielectric Material | Polyester |
| Height - Seated (Max) | 0.779 in |
| Lead Spacing | 0.732 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.882 in |
| Size / Dimension Width | 0.52 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 630 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
