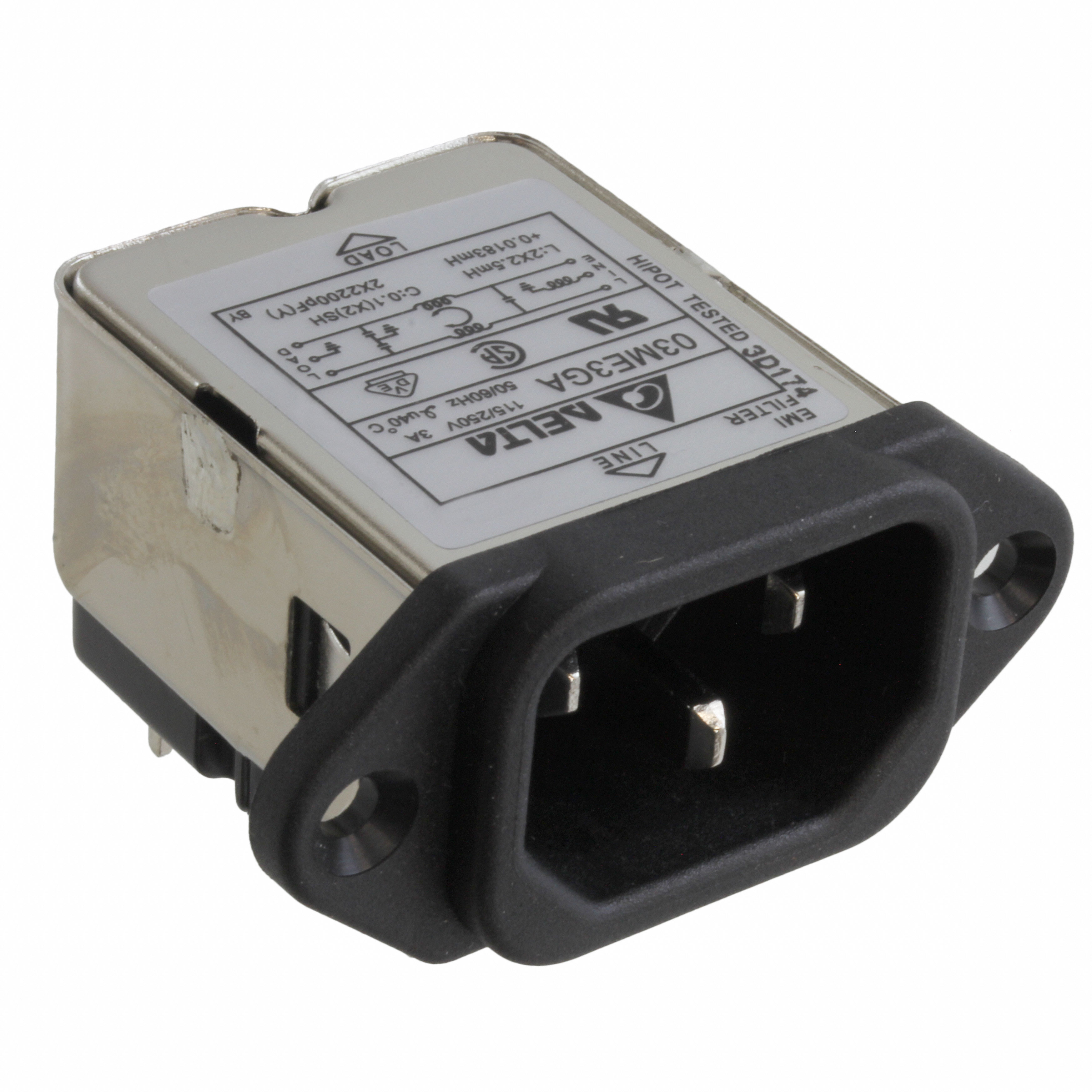

03ME3GA

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PNL SLDR

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PNL SLDR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle

Technical documentation and resources

Specification	03ME3GA	03ME Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	3 A	3 A
Current Rating - Filter	3 A	3 A
Filter Type	Filtered (EMI, RFI) - Commercial	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Flange, Through Hole, Right Angle	Panel Mount, Flange, Through Hole, Right Angle
Panel Cutout Dimensions [x]	30.5 mm	30.5 mm
Panel Cutout Dimensions [y]	22.86 mm	22.86 mm
Termination	Solder	Solder
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

Part	Termination	Connector Type	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Approval Agency	Accomodates a Fuse	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Filter Type	Current Rating - Filter	Current Rating - Appliance Inlet
Delta Electronics 03ME3G	Solder	Male Blades, Receptacle	IEC 320-C14	22.86 mm	30.5 mm	Panel Mount, Flange, Through Hole, Right Angle	CSA, UL, VDE		115 VAC	250 VAC	Filtered (EMI, RFI) - Commercial	3 A	3 A
Delta Electronics 03ME3GA	Solder	Male Blades, Receptacle	IEC 320-C14	22.86 mm	30.5 mm	Panel Mount, Flange, Through Hole, Right Angle	CSA, UL, VDE		115 VAC	250 VAC	Filtered (EMI, RFI) - Commercial	3 A	3 A
