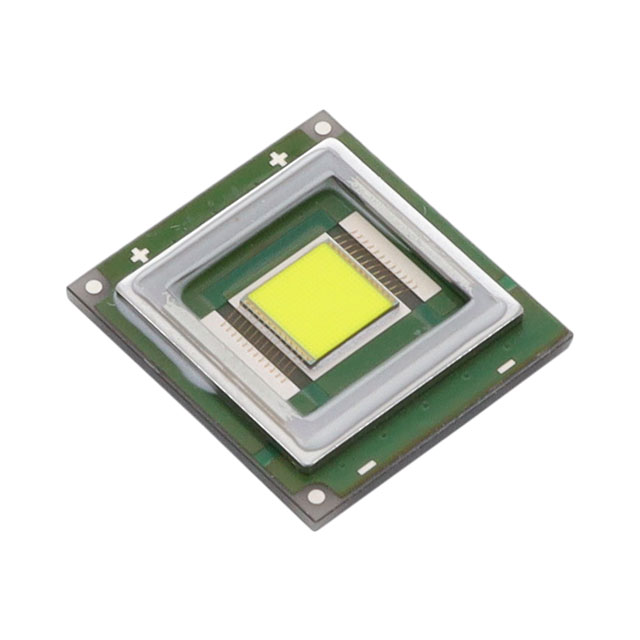

SBT-90-WDS-F72-SA600
ActiveLuminus Devices Inc.
LED WHITE 2SMD
SBT-90-WDS-F72-SA600
ActiveLuminus Devices Inc.
LED WHITE 2SMD
Description
General part information
SBT-90-WDS-F72-SA600
LED Lighting - White 3.1V 9A 120° 2-SMD, No Lead Exposed Pad
Technical Specifications
Parameters and characteristics for this part
| Specification | SBT-90-WDS-F72-SA600 |
|---|---|
| Color | White |
| CRI (Color Rendering Index) | 70 |
| Current - Max | 18 A |
| Current - Test | 9 A |
| Flux (Maximum) | 2990 lm |
| Flux (Minimum) | 2780 lm |
| Flux (Nominal) | 2885 lm |
| Height - Seated (Max) | 0.067 in |
| Lumens/Watt | 103 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Width | 0.433 in |
| Thermal Resistance of Package | 0.5 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.1 V |
