A9BBG-1808F
ActiveTE Connectivity AMP Connectors
FLEX CABLE - AFF18G/AF18/AFF18G
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A9BBG-1808F
ActiveTE Connectivity AMP Connectors
FLEX CABLE - AFF18G/AF18/AFF18G
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A9BBG-1808F | A9BBG Series |
|---|---|---|
| Contact Termination | Receptacle to Receptacle | Receptacle to Receptacle |
| Length | 203.2 mm | 76.2 - 203.2 mm |
| Length | 8 in | 6 - 8 in |
| Length | - | 3 - 5 in |
| Length | - | 101.6 - 127 mm |
| Number of Positions | 18 | 2 - 20 |
| Number of Positions | - | 16 |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.87 | |
| 10 | $ 13.98 | |||
| 25 | $ 12.98 | |||
| 50 | $ 12.26 | |||
| 100 | $ 11.59 | |||
| 250 | $ 10.77 | |||
| 500 | $ 10.18 | |||
| 1000 | $ 9.86 | |||
A9BBG Series
FLEX CABLE - AFF06G/AF06/AFF06G
...
| Part | Contact Termination | Pitch [x] | Pitch [x] | Length | Length | Number of Positions | Length [x] | Length [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A9BBG-0608F | Receptacle to Receptacle | 2.54 mm | 0.1 in | 203.2 mm | 8 in | 6 | |||
TE Connectivity AMP Connectors A9BBG-1206F | Receptacle to Receptacle | 2.54 mm | 0.1 in | 152.4 mm | 6 in | 12 | |||
TE Connectivity AMP Connectors A9BBG-2006F | Receptacle to Receptacle | 2.54 mm | 0.1 in | 152.4 mm | 6 in | 20 | |||
TE Connectivity AMP Connectors A9BBG-0503F | Receptacle to Receptacle | 2.54 mm | 0.1 in | 76.2 mm | 3 in | ||||
TE Connectivity AMP Connectors A9BBG-0903F | Receptacle to Receptacle | 2.54 mm | 0.1 in | 76.2 mm | 9 | 3 in | |||
TE Connectivity AMP Connectors A9BBG-1502F | Receptacle to Receptacle | 2.54 mm | 0.1 in | 15 | |||||
TE Connectivity AMP Connectors A9BBG-1002F | Receptacle to Receptacle | 2.54 mm | 0.1 in | 10 | |||||
TE Connectivity AMP Connectors A9BBG-1503F | Receptacle to Receptacle | 2.54 mm | 0.1 in | 76.2 mm | 15 | 3 in | |||
TE Connectivity AMP Connectors A9BBG-1303F | Receptacle to Receptacle | 2.54 mm | 0.1 in | 76.2 mm | 13 | 3 in | |||
TE Connectivity AMP Connectors A9BBG-1808F | Receptacle to Receptacle | 2.54 mm | 0.1 in | 203.2 mm | 8 in | 18 |
Description
General part information
A9BBG Series

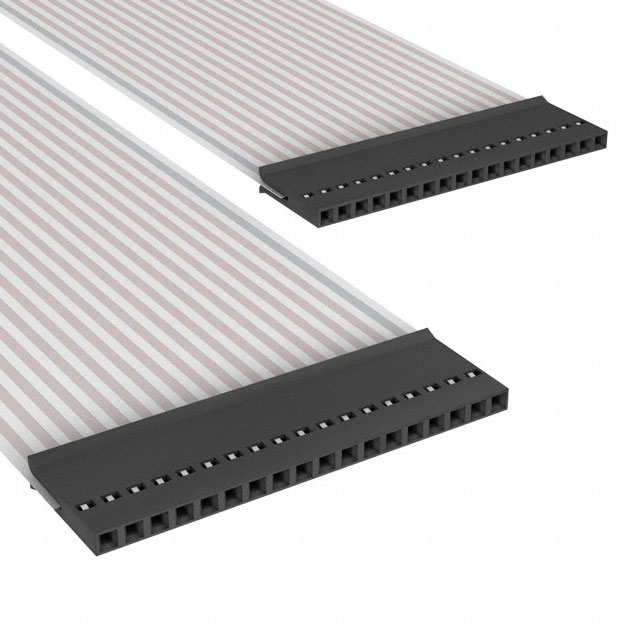

18 Position Flat Flex Cable Assembly Receptacle to Receptacle 8.00" (203.20mm)
Documents
Technical documentation and resources
