1003-005-23100

Unknown

CnC Tech, LLC

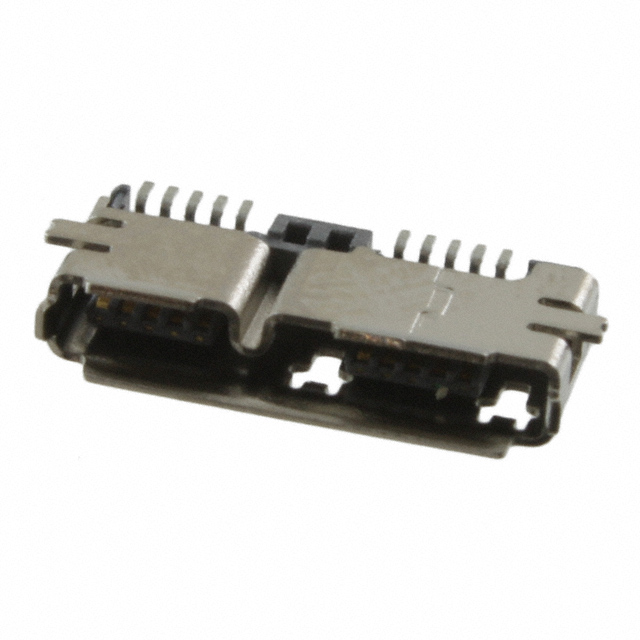

CONN RCPT USB3.0 MICRO AB SMD RA

Search across all available documentation for this part.

Unknown

CnC Tech, LLC

CONN RCPT USB3.0 MICRO AB SMD RA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB - micro AB USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0)) Receptacle Connector 10 Position Surface Mount, Right Angle

Technical documentation and resources

Specification	1003-005-23100	1003-005 Series

Connector Type	USB - micro AB	USB - micro B, USB - micro AB
Contact Finish	Gold	Gold
Current Rating (Amps)	-	0.25 - 1.8 A
Features	Solder Retention	Solder Retention
Gender	Receptacle	Receptacle
Insulation Color	Black	Black
Material Flammability Rating	-	UL94 V-0
Mounting Feature	Horizontal	Horizontal
Mounting Type	Surface Mount, Right Angle	Surface Mount, Right Angle
Number of Contacts	10	10
Number of Ports	1	1
Operating Temperature	-	-40 °C
Operating Temperature	-	105 ░C
Shell/Shielding Material	-	Brass
Shielding	-	Unshielded
Termination	Solder	Solder

Part	Contact Finish	Number of Ports	Shell/Shielding Material	Termination	Gender	Mounting Feature	Connector Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Shielding	Mounting Type	Number of Contacts	Insulation Color	Features
CnC Tech, LLC 1003-005-22100-TR	Gold	1	Brass	Solder	Receptacle	Horizontal	USB - micro B	UL94 V-0	-40 °C	105 ░C	0.25 A, 1.8 A	Unshielded	Surface Mount, Right Angle	10	Black
CnC Tech, LLC 1003-005-23100-TR	Gold	1	Brass	Solder	Receptacle	Horizontal	USB - micro B	UL94 V-0	-40 °C	105 ░C	0.25 A, 1.8 A	Unshielded	Surface Mount, Right Angle	10	Black
CnC Tech, LLC 1003-005-23100	Gold	1		Solder	Receptacle	Horizontal	USB - micro AB						Surface Mount, Right Angle	10	Black	Solder Retention
CnC Tech, LLC 1003-005-22100	Gold	1		Solder	Receptacle	Horizontal	USB - micro B						Surface Mount, Right Angle	10	Black	Solder Retention
