17281-3SG-300
ActiveConxall/Switchcraft

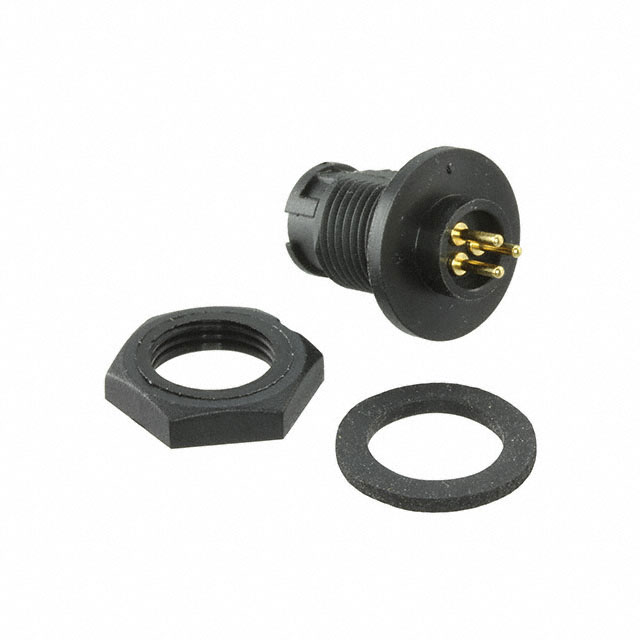

CONN RCPT FMALE 3POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
17281-3SG-300
ActiveConxall/Switchcraft
CONN RCPT FMALE 3POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 17281-3SG-300 | 17281-3S Series |
|---|---|---|
| Applications | Medical, Data, Instrumentation, Industrial | Medical, Data, Instrumentation, Industrial |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 HB | UL94 HB |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
| Voltage Rating | 600 VAC | 600 VAC |
17281-3S Series
CONN RCPT FMALE 3POS GOLD SOLDER
| Part | Material Flammability Rating | Ingress Protection | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Mounting Feature | Current Rating (Amps) | Color | Shielding | Primary Material | Contact Material | Voltage Rating | Contact Finish - Mating | Mounting Type | Orientation | Termination | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 17281-3SG-3ES | UL94 HB | IP67 - Dust Tight, Waterproof | Receptacle, Female Sockets | 85 °C | -40 °C | Data, Industrial, Instrumentation, Medical | Bulkhead - Front Side Nut | 7.5 A | Black | Unshielded | Plastic | Copper Alloy | 600 VAC | Gold | Panel Mount, Through Hole | Keyed | Solder | Bayonet Lock |
Conxall/Switchcraft 17281-3SG-300 | UL94 HB | IP67 - Dust Tight, Waterproof | Receptacle, Female Sockets | 85 °C | -40 °C | Data, Industrial, Instrumentation, Medical | Bulkhead - Front Side Nut | 7.5 A | Black | Unshielded | Plastic | Copper Alloy | 600 VAC | Gold | Panel Mount, Through Hole | Keyed | Solder | Bayonet Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.57 | |
| 10 | $ 5.94 | |||
| 100 | $ 5.20 | |||
| 1000 | $ 3.83 | |||
Description
General part information
17281-3S Series
3 Position Circular Connector Receptacle, Female Sockets Solder
