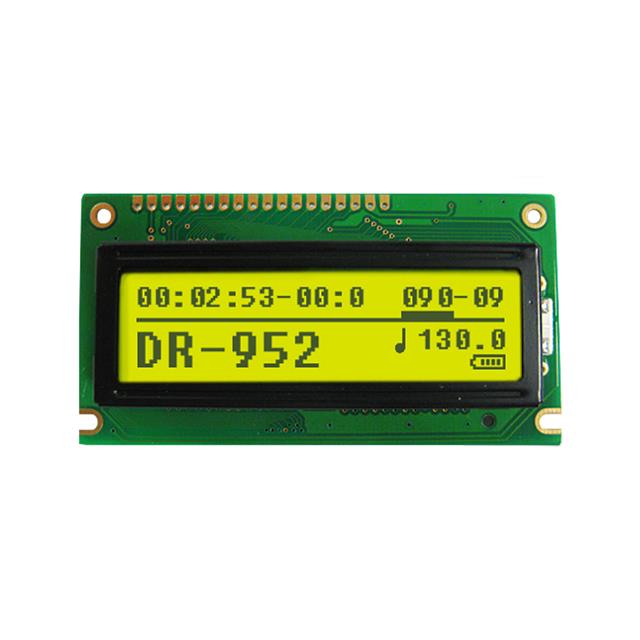

NHD-12232AZ-FL-YBW
ActiveNewhaven Display Intl
LCD MOD GRAPH 122X32 Y/G TRANSFL
Deep-Dive with AI
Search across all available documentation for this part.
NHD-12232AZ-FL-YBW
ActiveNewhaven Display Intl
LCD MOD GRAPH 122X32 Y/G TRANSFL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NHD-12232AZ-FL-YBW |
|---|---|
| Controller Type | SBN1661G_M02 |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pitch [x] | 0.49 mm |
| Dot Pitch [y] | 0.44 mm |
| Dot Size [x] | 0.4 mm |
| Dot Size [y] | 0.45 mm |
| Interface | Parallel, 8-Bit |
| Viewing Area [x] | 64 mm |
| Viewing Area [y] | 17.9 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 16.78 | |
| 5 | $ 15.77 | |||
| 10 | $ 14.77 | |||
| 50 | $ 13.93 | |||
| 100 | $ 13.26 | |||
| 250 | $ 12.59 | |||
| 500 | $ 12.08 | |||
Description
General part information
NHD-12232AZ-FL-YBW
Graphic LCD Display Module Transflective STN - Super-Twisted Nematic Parallel, 8-Bit 122 x 32
