PSG.0B.306.CLAD25
ActiveMilspecwest, LLC

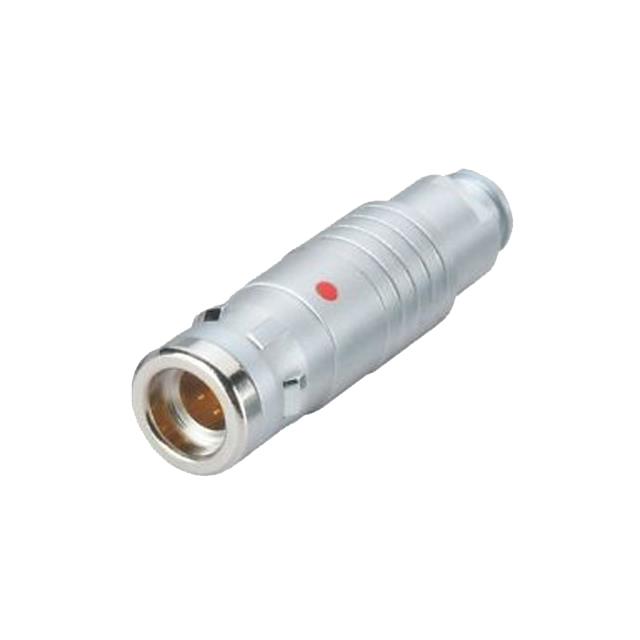

PUSH-PULL PLUG SHELL SIZE 0B , 6
PSG.0B.306.CLAD25
ActiveMilspecwest, LLC
PUSH-PULL PLUG SHELL SIZE 0B , 6
Description
General part information
PSG.0B.306.CLAD25
6 Position Circular Connector Plug, Male Pins Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | PSG.0B.306.CLAD25 |
|---|---|
| Applications | Industrial, Automotive, Medical, Aerospace |
| Color | Silver |
| Connector Type | Male Pins, Plug |
| Fastening Type | Push-Pull |
| Features | Coupling Nut |
| Ingress Protection | IP50 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -55 °C |
| Orientation | G |
| Shell Finish | Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 306 |
| Shell Size - Insert | 306 |
| Termination | Solder |
