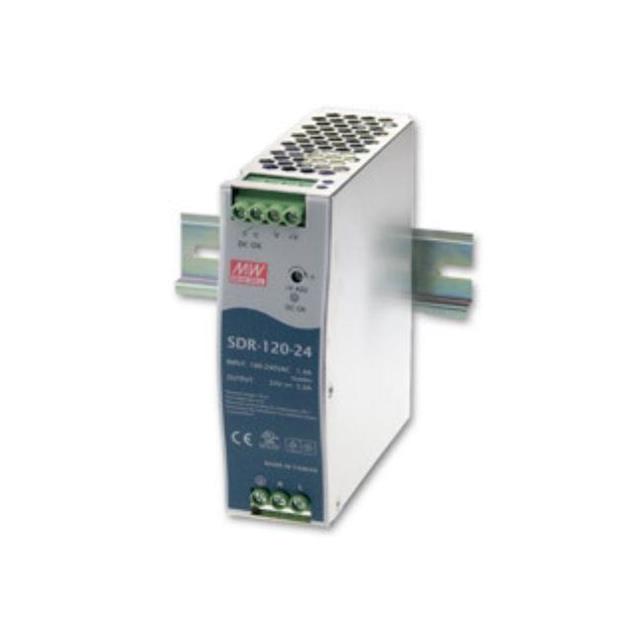

SDR-120-24
ActiveAntaira Technologies
AC/DC CONVERTER 2X24V 120W
SDR-120-24
ActiveAntaira Technologies
AC/DC CONVERTER 2X24V 120W
Description
General part information
SDR-120-24
AC/DC CONVERTER 2X24V 120W
Technical Specifications
Parameters and characteristics for this part
| Specification | SDR-120-24 |
|---|---|
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | TUV, UKCA, CE, EAC, cULus, CB |
| Efficiency | 91 % |
| Features | PFC, DC Input Capable, Adjustable Output, Universal Input |
| Number of Outputs | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Power (Watts) | 120 W |
| Size / Dimension Height | 4.93 in |
| Size / Dimension Length | 4.47 in |
| Size / Dimension Width | 1.57 in |
| Standard Number | UL 508, 62368-1 |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 24 V |
| Voltage - Output 2 | 24 V |
