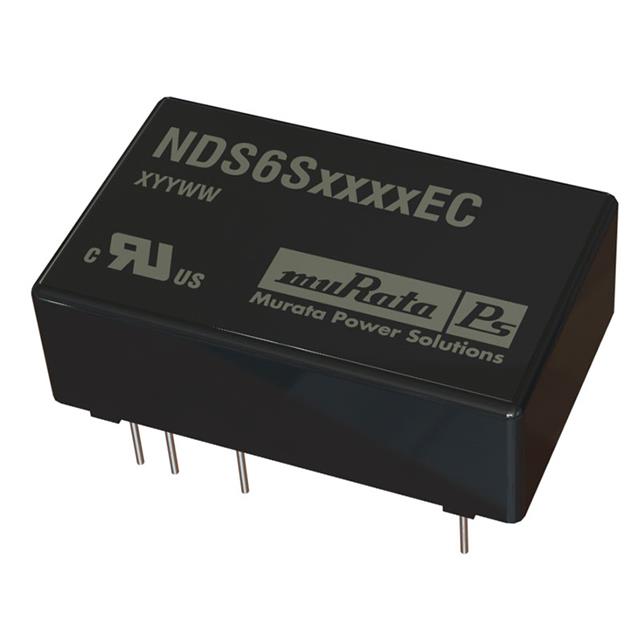

NDS6S2405EC

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 6W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 5V 6W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 5V 1.2A 18V - 36V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

DC DC CONVERTER 5V 6W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Number of Outputs	Voltage - Input (Min) [Min]	Mounting Type	Applications	Voltage - Output 1	Voltage - Isolation	Voltage - Input (Max) [Max]	Type	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Current - Output (Max) [Max]	Efficiency
Murata Power Solutions Inc. NDS6S2405EC	85 °C	-40 °C	9 PC Pad	24-DIP Module	1	18 V	Through Hole	ITE (Commercial)	5 V	1.5 kV	36 V	Isolated Module	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	6 W	1.2 A
Murata Power Solutions Inc. NDS6S2415C	85 °C	-40 °C		24-DIP Module, 8 Leads	1	18 V	Through Hole	ITE (Commercial)	15 V	1.5 kV	36 V	Isolated Module	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	6 W	400 mA	87 %
Murata Power Solutions Inc. NDS6S2405C	85 °C	-40 °C		24-DIP Module, 8 Leads	1	18 V	Through Hole	ITE (Commercial)	5 V	1.5 kV	36 V	Isolated Module	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	6 W	1.2 A
Murata Power Solutions Inc. NDS6S2412C	85 °C	-40 °C		24-DIP Module, 8 Leads	1	18 V	Through Hole	ITE (Commercial)	12 V	1.5 kV	36 V	Isolated Module	10 mm	20 mm	32 mm	1.26 in	0.79 "	0.39 in	6 W	500 mA	87 %
