Technical Specifications
Parameters and characteristics for this part
| Specification | MFP50SCRD52-60K4 |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 500 mW |
| Power (Watts) Options | 1/2W |
| Resistance | 60.4 kOhm |
| Size / Dimension Diameter | 0.094 in |
| Size / Dimension Length | 0.248 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.25 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.07 | <1d |
CAD
3D models and CAD resources for this part
Description
General part information

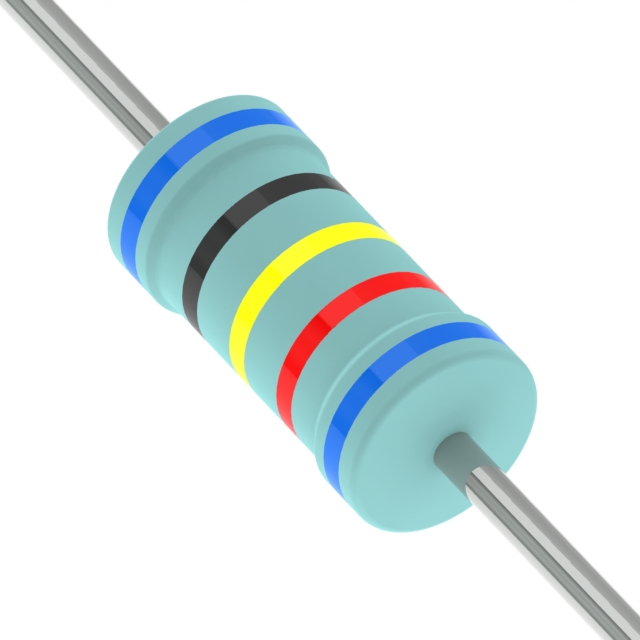

MFP50SCRD52-60K4
60.4 kOhms ±0.25% 0.5W, 1/2W Through Hole Resistor Axial Metal Film
Documents
Technical documentation and resources
