47-25306-Y
ActiveNTE Electronics, Inc
H/S 3/8IN 6IN YELLOW DUAL
47-25306-Y
ActiveNTE Electronics, Inc
H/S 3/8IN 6IN YELLOW DUAL
Description
General part information
47-25306-Y

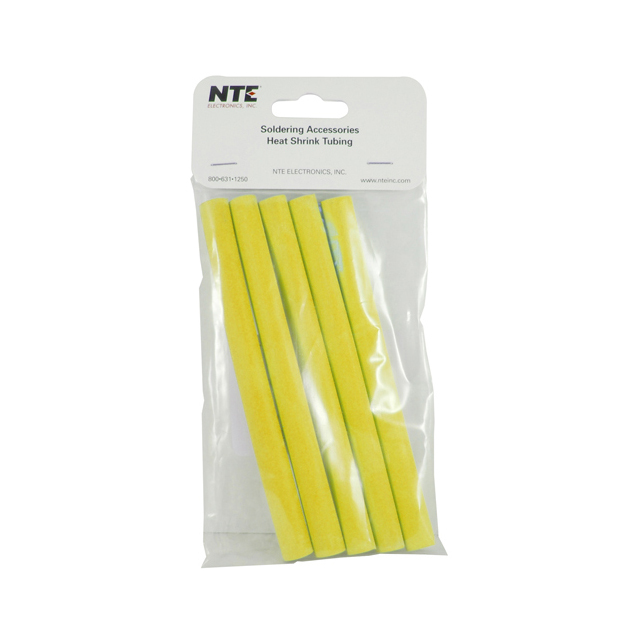

Heat Shrink Tubing, Flexible 0.375" (9.53mm) 3 to 1 Yellow 0.500' (152.40mm, 6.00")
Technical Specifications
Parameters and characteristics for this part
| Specification | 47-25306-Y |
|---|---|
| Color | Yellow |
| Features | Fluid Resistant, Flame Retardant, Adhesive Lined |
| Inner Diameter - Recovered | 0.118 in |
| Inner Diameter - Supplied | 0.375 in |
| Length | 0.5 ft |
| Material | Polyolefin (PO) |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Recovered Wall Thickness | 0.023 in |
| Shrink Temperature | 110 °C |
| Shrinkage Ratio | 3 |
| Type | Flexible, Tubing |
