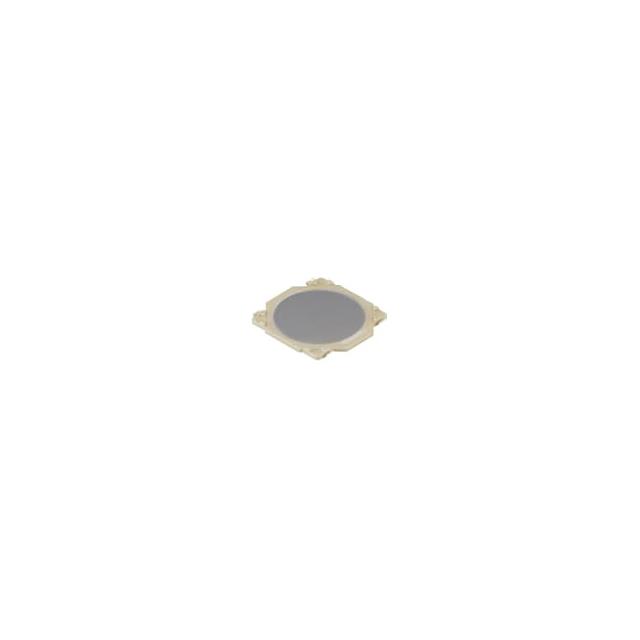

SKRRABE010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SKRRABE010	SKRRA Series

Actuator Height off PCB, Vertical	0.6 mm	0.6 mm
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Flush	Flush
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	5000000 Cycles	5000000 Cycles
Mounting Type	Surface Mount	Surface Mount
Operating Force	163 gf	102 - 204 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outline [x]	7.5 mm	7.5 mm
Outline [y]	7 mm	7 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.25 mm	0.25 mm
Termination Style	SMD (SMT) Tab	SMD (SMT) Tab

TACTILE SWITCH, 0.05A, 12VDC, SMD ROHS COMPLIANT: YES

Part	Switch Function	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Mounting Type	Actuator Type	Termination Style	Circuit	Operating Force	Actuator Orientation	Contact Rating @ Voltage	Actuator Height off PCB, Vertical	Mechanical Life	Outline [y]	Outline [x]
Alps Alpine SKRRACE010	Off-Mom	0.25 mm	85 °C	-40 °C	Non-Illuminated	Surface Mount	Flush	SMD (SMT) Tab	SPST-NO	204 gf	Top Actuated	0.05 A, 12 VDC	0.6 mm	5000000 Cycles	7 mm	7.5 mm
Alps Alpine SKRRAAE010	Off-Mom	0.25 mm	85 °C	-40 °C	Non-Illuminated	Surface Mount	Flush	SMD (SMT) Tab	SPST-NO	102 gf	Top Actuated	0.05 A, 12 VDC	0.6 mm	5000000 Cycles	7 mm	7.5 mm
Alps Alpine SKRRABE010	Off-Mom	0.25 mm	85 °C	-40 °C	Non-Illuminated	Surface Mount	Flush	SMD (SMT) Tab	SPST-NO	163 gf	Top Actuated	0.05 A, 12 VDC	0.6 mm	5000000 Cycles	7 mm	7.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
