T4140512051-000
ActiveTE Connectivity AMP Connectors

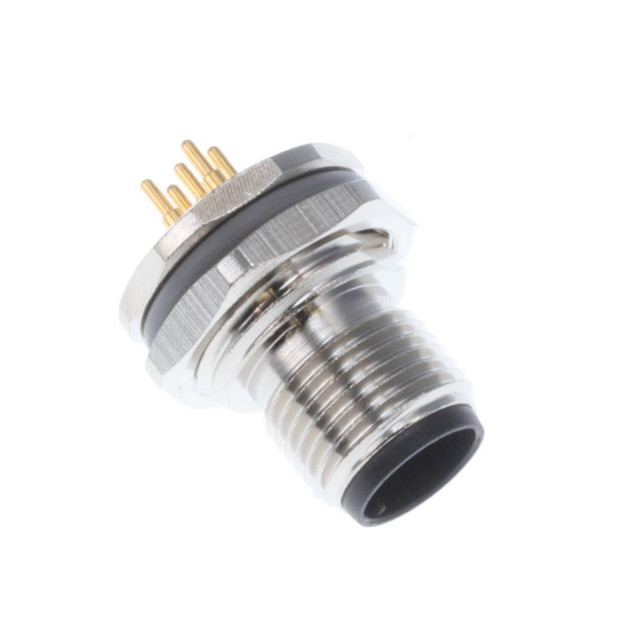

CONN RCPT MALE 5POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
T4140512051-000
ActiveTE Connectivity AMP Connectors
CONN RCPT MALE 5POS GOLD SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4140512051-000 | T41405 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Color | Silver | Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 3 µin | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 µm |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 4 A | 4 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | - | 2 - 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | D | D |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | M12-5 | M12-5, M12-4, M12-2 |
| Shielding | Unshielded | Unshielded |
| Termination | Solder | Solder |
| Voltage Rating | 60 VDC | 60 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.51 | |
| 10 | $ 4.80 | |||
| 25 | $ 4.68 | |||
| 50 | $ 4.55 | |||
| 100 | $ 4.45 | |||
T41405 Series
CONN RCPT MALE 5POS GOLD SOLDER
| Part | Current Rating (Amps) | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Shielding | Mounting Type | Connector Type | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Finish | Insert Material | Mounting Feature | Applications | Primary Material | Contact Finish - Mating | Shell Size - Insert | Voltage Rating | Color | Ingress Protection | Material Flammability Rating | Termination | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4140512051-000 | 4 A | D | 85 °C | -40 °C | Copper Alloy | Unshielded | Panel Mount, Through Hole | Male Pins, Receptacle | Copper Alloy | 3 µin | 0.076 µm | Nickel | Polyamide (PA66), Nylon 6/6 | Bulkhead - Front Side Nut | Industrial | Metal | Gold | M12-5 | 60 VDC | Silver | IP67 - Dust Tight, Waterproof | UL94 V-0 | Solder | |
TE Connectivity AMP Connectors T4140512041-000 | 4 A | D | 85 °C | -40 °C | Copper Alloy | Unshielded | Panel Mount, Through Hole | Male Pins, Receptacle | Copper Alloy | 3 µin | 0.076 µm | Nickel | Polyamide (PA66), Nylon 6/6 | Bulkhead - Front Side Nut | Industrial | Metal | Gold | M12-4 | 250 VDC | Silver | IP67 - Dust Tight, Waterproof | UL94 V-0 | Solder | 4 |
TE Connectivity AMP Connectors T4140512021-000 | 4 A | D | 85 °C | -40 °C | Copper Alloy | Unshielded | Panel Mount, Through Hole | Male Pins, Receptacle | Copper Alloy | 3 µin | 0.076 µm | Nickel | Polyamide (PA66), Nylon 6/6 | Bulkhead - Front Side Nut | Industrial | Metal | Gold | M12-2 | 250 VDC | Silver | IP67 - Dust Tight, Waterproof | UL94 V-0 | Solder | 2 |
Description
General part information
T41405 Series
5 Position Circular Connector Receptacle, Male Pins Solder
