TC1303BDM-DDBK1

Active

Microchip Technology

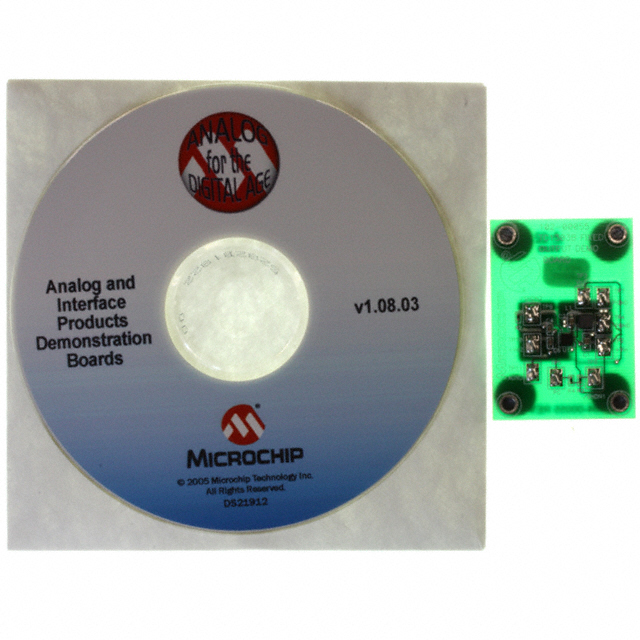

POWER MANAGEMENT IC DEVELOPMENT TOOLS TC1303 SWITCHER/LDO EVALUATION BRD

Find alt

Alpha

TC1303BDM-DDBK1

Active

Microchip Technology

POWER MANAGEMENT IC DEVELOPMENT TOOLS TC1303 SWITCHER/LDO EVALUATION BRD

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

TC1303 Series

The TC1303A combines a 500mA synchronous buck regulator and a 300mA low-dropout (LDO) regulator with a power-good monitor to provide a highly integrated solution for applications that require multiple supply voltages. The power-good function monitors the output of the buck regulator.

Technical Specifications

Parameters and characteristics for this part

Specification	TC1303BDM-DDBK1

Board Type	Fully Populated
Contents	Board
Current - Output (Max)	500 mA
Current - Output (Min)	0.3 A
Frequency - Switching	2 MHz
Main Purpose	Step Down with LDO, DC/DC
Non-Isolated Output Count	2 count
Output Type	Non-Isolated
Regulator Topology	Buck
Supplied Contents	Board(s)
Total Output Count	2
Utilized IC / Part	TC1303B
Voltage - Input (Maximum)	5.5 V
Voltage - Input (Minimum)	2.7 V
Voltage - Output	1.8 V, 2.7 V

TC1303 Series

2MHz 500mA Synchronous Buck Regulator + 300mA LDO w/Power Good

...

Part	w/Sequencer	Package / Case	Current - Output 2	Voltage - Output 2	w/LED Driver	Current - Output 1	Voltage/Current - Output 1 Options	Frequency - Switching	Number of Outputs	Mounting Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Operating Temperature (Min)	Operating Temperature (Max)	Topology	w/Supervisor	Package Length	Package Name	Package Width	Voltage - Output 1
Microchip Technology TC1303A-ZA0EMF	Yes	10-VFDFN Exposed Pad	300 mA	3.3 V	No	500 mA	Adj	2 MHz	2	Surface Mount	5.5 V	2.7 V	-40 °C	85 °C	Linear (LDO) (1) Step-Down (Buck) Synchronous (1)	No	3 mm	10-DFN	3 mm
Microchip Technology TC1303A-ZA0EUNTR	Yes		300 mA	3.3 V	No	500 mA	Adj	2 MHz	2	Surface Mount	5.5 V	2.7 V	-40 °C	85 °C	Linear (LDO) (1) Step-Down (Buck) Synchronous (1)	No	0.118 in	10-MSOP 10-TFSOP	3 mm
Microchip Technology TC1303A-SI0EMF	Yes	10-VFDFN Exposed Pad	300 mA	2.5 V	No	500 mA		2 MHz	2	Surface Mount	5.5 V	2.7 V	-40 °C	85 °C	Linear (LDO) (1) Step-Down (Buck) Synchronous (1)	No	3 mm	10-DFN	3 mm	1.5 V
Microchip Technology TC1303A-ZS0EUN	Yes		300 mA	1.5 V	No	500 mA	Adj	2 MHz	2	Surface Mount	5.5 V	2.7 V	-40 °C	85 °C	Linear (LDO) (1) Step-Down (Buck) Synchronous (1)	No	0.118 in	10-MSOP 10-TFSOP	3 mm
Microchip Technology TC1303A-RI1EMF	Yes	10-VFDFN Exposed Pad	300 mA	2.5 V	No	500 mA		2 MHz	2	Surface Mount	5.5 V	2.7 V	-40 °C	85 °C	Linear (LDO) (1) Step-Down (Buck) Synchronous (1)	No	3 mm	10-DFN	3 mm	1.6 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

TC1262 Datasheet

Portable Power Conversion Design Guide

TC1303A/B/C, TC1304 Datasheet

TC1303BDM-DDBK1 | Datasheet
