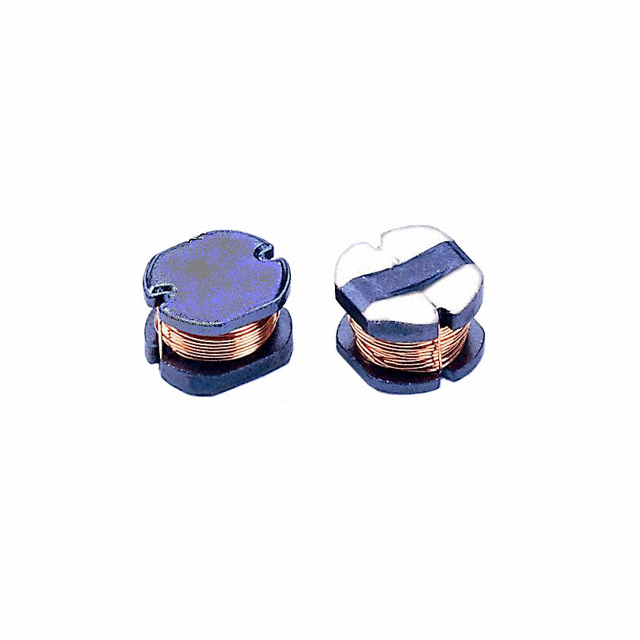

SC43-2R2
ActiveSignal Transformer
FIXED IND 2.2UH 2.7A 47 MOHM SMD
SC43-2R2
ActiveSignal Transformer
FIXED IND 2.2UH 2.7A 47 MOHM SMD
Description
General part information
SC43-2R2
2.2 µH Unshielded Wirewound Inductor 2.7 A 47mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SC43-2R2 |
|---|---|
| Current - Saturation (Isat) | 2.6 A |
| Current Rating | 2.7 A |
| DC Resistance (DCR) (Max) | 47 mOhm |
| Height - Seated (Max) | 0.138 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 7.96 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.189 in |
| Size / Dimension Width | 0.169 in |
| Tolerance | 20 % |
| Type | Wirewound |
