1105MWS
ActiveKanebridge
MACHINE SCREW - INDENTED HEX WAS
1105MWS
ActiveKanebridge
MACHINE SCREW - INDENTED HEX WAS
Description
General part information
1105MWS

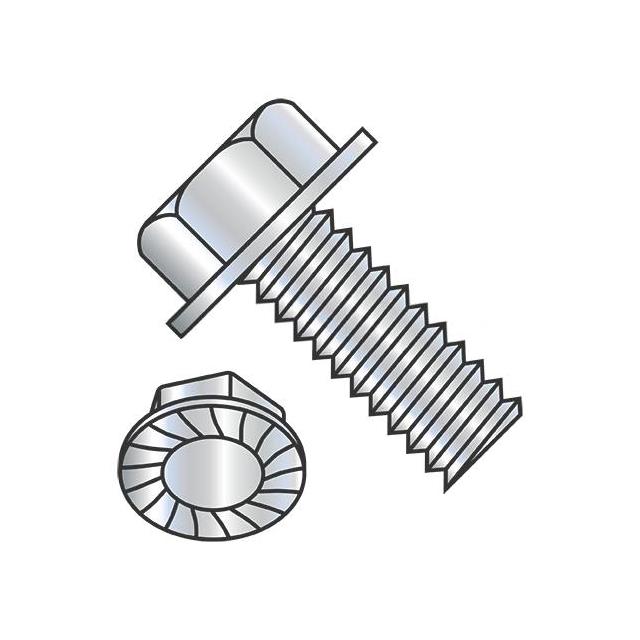

#10-32 Indented Hex Head Machine Screw External Hex Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1105MWS |
|---|---|
| Drive Type | External Hex, Hex Socket |
| Features | Serrated Washer |
| Head Diameter | 0.309 in |
| Head Height | 0.113 in |
| Length - Below Head | 0.313 in |
| Length - Overall | 0.426 in |
| Material | Steel |
| Plating | Zinc |
| Screw Head Type | Indented Hex Head |
| Thread Size (Max) | 32 mm |
| Thread Size (Min) | 10 mm |
| Type | Machine Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
