FMCN44198
ActiveFairview Microwave
CONN JACK SOLDER SMA
FMCN44198
ActiveFairview Microwave
CONN JACK SOLDER SMA
Description
General part information
FMCN44198

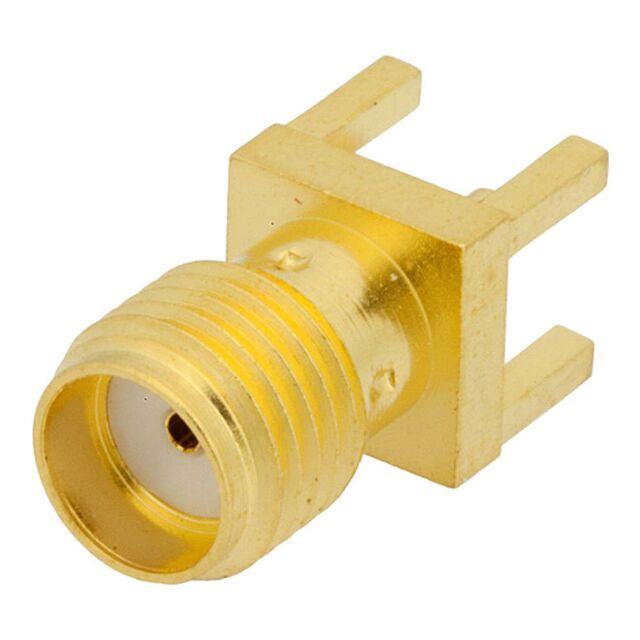

SMA Connector Jack, Female Socket 50 Ohms Through Hole Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCN44198 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Jack, Female Socket |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 12 Gbps |
| Housing Color | Gold |
| Impedance | 50 Ohm |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -60 °C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
