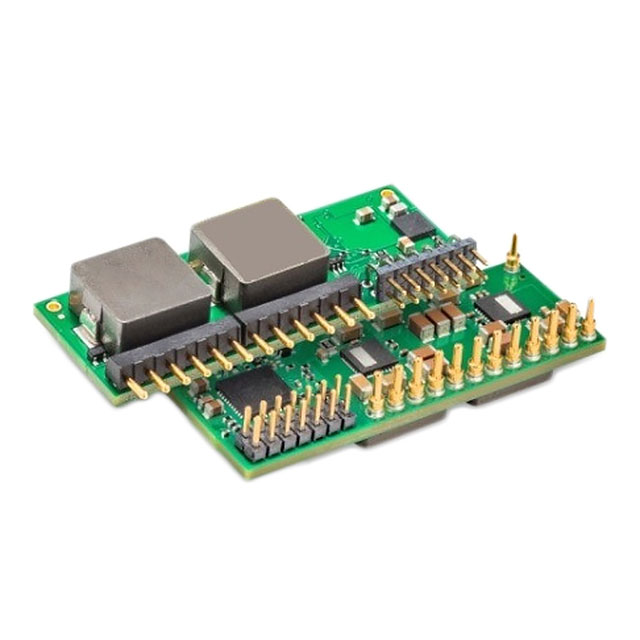

OKDX-T/90-W12-001-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 0.6-1.8V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OKDX-T/90-W12-001-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 0.6-1.8V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | OKDX-T/90-W12-001-C | OKDX-T Series |
|---|---|---|
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active High, Enable | Active High, Enable |
| Current - Output (Max) [Max] | 90 A | 20 - 90 A |
| Efficiency | 94.3 % | 93.5 - 94.6 % |
| Features | OTP, Remote On/Off, OVP, UVLO, OCP | OCP, UVLO, OTP, OVP, Remote On/Off, SCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 203 °F | 125 - 203 °C |
| Operating Temperature [Min] | -30 ░C | -40 - -30 °C |
| Package / Case | 26-SIP Module | 17-SIP Module, 13-SIP Module, 20-SIP Module, 26-SIP Module |
| Power (Watts) | - | 83 W |
| Size / Dimension | - | 15.6 mm |
| Size / Dimension | - | 7.6 mm |
| Size / Dimension [x] | 50.8 mm | 26.3 - 50.8 mm |
| Size / Dimension [x] | 2 in | 1.04 - 2 in |
| Size / Dimension [y] | 9.5 mm | 7.6 - 9.5 mm |
| Size / Dimension [y] | 0.37 " | 0.3 - 0.37 " |
| Size / Dimension [z] | 19.1 mm | 18.1 - 19.1 mm |
| Size / Dimension [z] | 0.75 in | 0.61 - 0.75 " |
| Supplier Device Package | - | 17-SIP |
| Type | Non-Isolated PoL Module, Digital | Non-Isolated PoL Module, Digital |
| Voltage - Input (Max) [Max] | 14 V | 14 V |
| Voltage - Input (Min) [Min] | 7.5 V | 4.5 - 7.5 V |
| Voltage - Output 1 [Max] | 1.8 V | 1.8 - 3.3 V |
| Voltage - Output 1 [Min] | 0.6 V | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
OKDX-T Series
DC DC CONVERTER 0.6-3.3V 66W
| Part | Voltage - Input (Max) [Max] | Type | Efficiency | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Applications | Supplier Device Package | Features | Mounting Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Current - Output (Max) [Max] | Number of Outputs | Size / Dimension [y] | Size / Dimension [z] | Control Features | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. OKDX-T/20-W12V-001-C | 14 V | Non-Isolated PoL Module, Digital | 93.5 % | 4.5 V | 125 °C | -40 °C | 17-SIP Module | 0.6 V | 3.3 V | ITE (Commercial) | 17-SIP | OCP, OTP, OVP, UVLO | Through Hole | 0.61 " | 1.04 in | 15.6 mm | 7.6 mm | 0.3 " | 26.3 mm | 20 A | 1 | ||||
Murata Power Solutions Inc. OKDX-T/20-W12E-001-C | 14 V | Non-Isolated PoL Module, Digital | 93.5 % | 4.5 V | 125 °C | -40 °C | 17-SIP Module | 0.6 V | 3.3 V | ITE (Commercial) | 17-SIP | OCP, OTP, OVP, UVLO | Through Hole | 0.61 " | 1.04 in | 15.6 mm | 7.6 mm | 0.3 " | 26.3 mm | 20 A | 1 | ||||
Murata Power Solutions Inc. OKDX-T/50-W12-001-C | 14 V | Non-Isolated PoL Module, Digital | 94.6 % | 4.5 V | 125 °C | -40 °C | 13-SIP Module | 0.6 V | 3.3 V | ITE (Commercial) | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | Through Hole | 0.71 in | 1.3 " | 0.3 " | 33 mm | 50 A | 1 | 7.6 mm | 18.1 mm | Active High, Enable | ||||
Murata Power Solutions Inc. OKDX-T/40-W12-001-C | 14 V | Non-Isolated PoL Module, Digital | 4.5 V | 125 °C | -40 °C | 20-SIP Module | 0.6 V | 3.3 V | ITE (Commercial) | OCP, OTP, OVP, UVLO | Through Hole | 0.71 in | 1.3 " | 0.3 " | 33 mm | 40 A | 1 | 7.6 mm | 18.1 mm | ||||||
Murata Power Solutions Inc. OKDX-T/25-W12E-001-C | 14 V | Non-Isolated PoL Module, Digital | 93.9 % | 4.5 V | 125 °C | -40 °C | 17-SIP Module | 0.6 V | 3.3 V | ITE (Commercial) | 17-SIP | OCP, OTP, OVP, UVLO | Through Hole | 0.61 " | 1.04 in | 15.6 mm | 7.6 mm | 0.3 " | 26.3 mm | 25 A | 1 | 83 W | |||
Murata Power Solutions Inc. OKDX-T/90-W12-001-C | 14 V | Non-Isolated PoL Module, Digital | 94.3 % | 7.5 V | 203 °F | -30 ░C | 26-SIP Module | 0.6 V | 1.8 V | ITE (Commercial) | OCP, OTP, OVP, Remote On/Off, UVLO | Through Hole | 0.75 in | 2 in | 0.37 " | 50.8 mm | 90 A | 1 | 9.5 mm | 19.1 mm | Active High, Enable |
Description
General part information
OKDX-T Series
Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.6 ~ 1.8V 90A 7.5V - 14V Input
