Description
General part information
21038211807

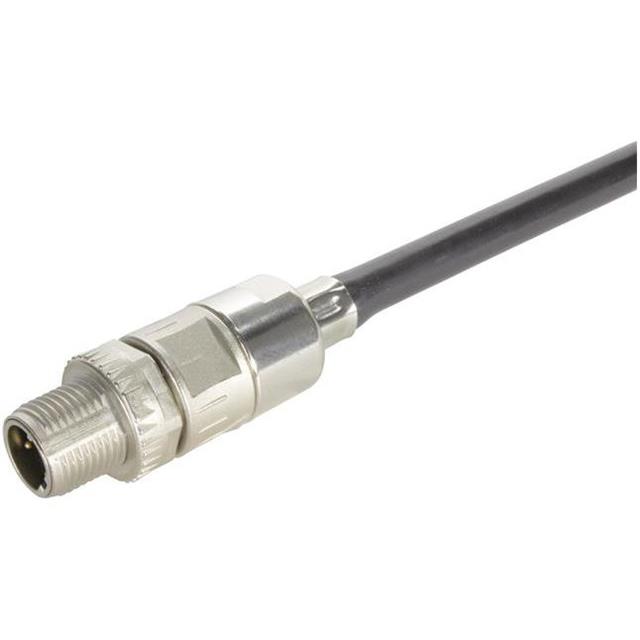

8 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell
Technical Specifications
Parameters and characteristics for this part
| Specification | 21038211807 |
|---|---|
| Connector Type | Plug Housing |
| Fastening Type | Threaded |
| Features | Backshell |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP67, IP65 |
| Insert Material | LCP, Liquid Crystal Polymer |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Primary Material | Metal |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M12-8 |
| Shielding | Shielded |
