3180-4SG-3DC

Active

Conxall/Switchcraft

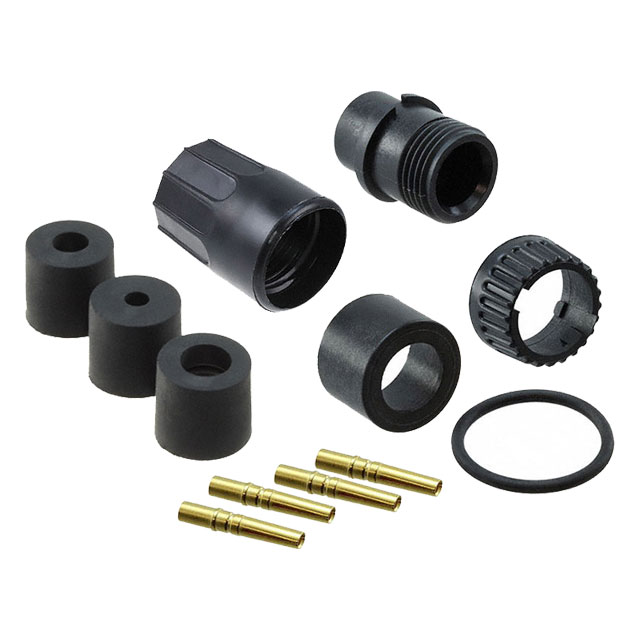

CONN PLUG FMALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3180-4SG-3DC

Active

Conxall/Switchcraft

CONN PLUG FMALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.80

Description

General part information

3180-4S Series

4 Position Circular Connector Plug, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3180-4SG-3DC	3180-4S Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	5.33 - 7.62 mm
Cable Opening	-	0.23 - 0.32 in
Cable Opening	-	8.13 mm
Cable Opening	-	0.21 - 0.3 in
Cable Opening	-	5.84 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

3180-4S Series

CONN PLUG FMALE 4POS GOLD CRIMP

Part	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Backshell Material, Plating	Fastening Type	Termination	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Number of Positions	Orientation	Contact Finish - Mating	Features	Connector Type	Mounting Type	Contact Material	Ingress Protection	Primary Material	Color	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 3180-4SG-330	Unshielded	-40 °C	115 °C	600 V	Nylon, Polyamide (PA)	Bayonet Lock	Crimp	7.62 mm	0.32 in	8.13 mm	0.3 in	4	Keyed	Gold	Backshell	Female Sockets, Plug	Free Hanging (In-Line)	Brass	Weathertight	Plastic	Black
Conxall/Switchcraft 3180-4SG-321	Unshielded	-40 °C	115 °C	600 V	Nylon, Polyamide (PA)	Bayonet Lock	Crimp	5.33 mm	0.23 in		0.21 in	4	Keyed	Gold	Backshell	Female Sockets, Plug	Free Hanging (In-Line)	Brass	Weathertight	Plastic	Black	5.84 mm
Conxall/Switchcraft 3180-4SG-318	Unshielded	-40 °C	115 °C	600 V	Nylon, Polyamide (PA)	Bayonet Lock	Crimp					4	Keyed	Gold	Backshell	Female Sockets, Plug	Free Hanging (In-Line)	Brass	Weathertight	Plastic	Black		4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3180-4SG-315	Unshielded	-40 °C	115 °C	600 V	Nylon, Polyamide (PA)	Bayonet Lock	Crimp					4	Keyed	Gold	Backshell	Female Sockets, Plug	Free Hanging (In-Line)	Brass	Weathertight	Plastic	Black						0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3180-4SG-530	Unshielded	-40 °C	115 °C	600 V	Nylon, Polyamide (PA)	Bayonet Lock	Crimp	7.62 mm	0.32 in	8.13 mm	0.3 in	4	Keyed	Gold	Backshell, Cable Clamp	Female Sockets, Plug	Free Hanging (In-Line)	Brass	Weathertight	Plastic	Black
Conxall/Switchcraft 3180-4SG-518	Unshielded	-40 °C	115 °C	600 V	Nylon, Polyamide (PA)	Bayonet Lock	Crimp					4	Keyed	Gold	Backshell, Cable Clamp	Female Sockets, Plug	Free Hanging (In-Line)	Brass	Weathertight	Plastic	Black		4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3180-4SG-515	Unshielded	-40 °C	115 °C	600 V	Nylon, Polyamide (PA)	Bayonet Lock	Crimp					4	Keyed	Gold	Backshell, Cable Clamp	Female Sockets, Plug	Free Hanging (In-Line)	Brass	Weathertight	Plastic	Black						0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3180-4SG-3DC	Unshielded	-40 °C	115 °C	600 V	Nylon, Polyamide (PA)	Bayonet Lock	Crimp					4	Keyed	Gold	Backshell	Female Sockets, Plug	Free Hanging (In-Line)	Brass	Weathertight	Plastic	Black
