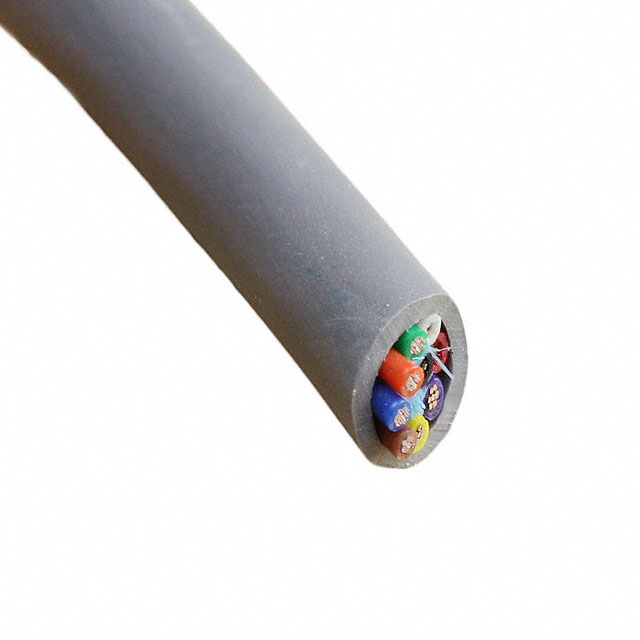

1219C SL021
ActiveALPHA WIRE
CABLE 9COND 24AWG SHLD
Deep-Dive with AI
Search across all available documentation for this part.
1219C SL021
ActiveALPHA WIRE
CABLE 9COND 24AWG SHLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1219C SL021 | 1219C Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 32 AWG | 32 AWG |
| Conductor Strand [custom] | 7 | 7 |
| Features | Drain Wire | Drain Wire |
| Jacket (Insulation) Diameter | 5.79 mm | 5.79 mm |
| Jacket (Insulation) Diameter | 0.228 in | 0.228 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Slate | Slate |
| Length | 1000 ft | 1000 ft |
| Length | 304.8 m | 304.8 m |
| Length | - | 100 - 500 ' |
| Length | - | 30.5 - 152.4 m |
| Number of Conductors | 9 | 9 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -20 C | -20 C |
| Shield Coverage | 100 % | 100 % |
| Shield Material | Aluminum | Aluminum |
| Shield Type | Foil | Foil |
| Usage | Control, Communication | Control, Communication |
| Voltage | 300 V | 300 V |
| Wire Gauge | 24 AWG | 24 AWG |
1219C Series
MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 9 CONDUCTOR, 24 AWG, 0.23 MM², 500 FT, 152.4 M
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Number of Conductors | Length [x] | Length [x] | Jacket (Insulation) Material | Shield Type | Features | Conductor Insulation | Conductor Material | Usage | Shield Coverage | Voltage | Wire Gauge | Cable Type | Operating Temperature [Min] | Operating Temperature [Max] | Shield Material | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 1219C SL002 | 32 AWG | 7 | Slate | 9 | 500 ' | 152.4 m | Poly-Vinyl Chloride (PVC) | Foil | Drain Wire | Poly-Vinyl Chloride (PVC) | Copper, Tinned | Communication, Control | 100 % | 300 V | 24 AWG | Multi-Conductor | -20 C | 80 C | Aluminum | 5.79 mm | 0.228 in | ||
ALPHA WIRE 1219C SL021 | 32 AWG | 7 | Slate | 9 | Poly-Vinyl Chloride (PVC) | Foil | Drain Wire | Poly-Vinyl Chloride (PVC) | Copper, Tinned | Communication, Control | 100 % | 300 V | 24 AWG | Multi-Conductor | -20 C | 80 C | Aluminum | 5.79 mm | 0.228 in | 1000 ft | 304.8 m | ||
ALPHA WIRE 1219C SL005 | 32 AWG | 7 | Slate | 9 | 100 ft | 30.5 m | Poly-Vinyl Chloride (PVC) | Foil | Drain Wire | Poly-Vinyl Chloride (PVC) | Copper, Tinned | Communication, Control | 100 % | 300 V | 24 AWG | Multi-Conductor | -20 C | 80 C | Aluminum | 5.79 mm | 0.228 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 1.53 | |
Description
General part information
1219C Series
9 Conductor Multi-Conductor Cable Slate 24 AWG Foil 1000.0' (304.8m)
