FMAD1100

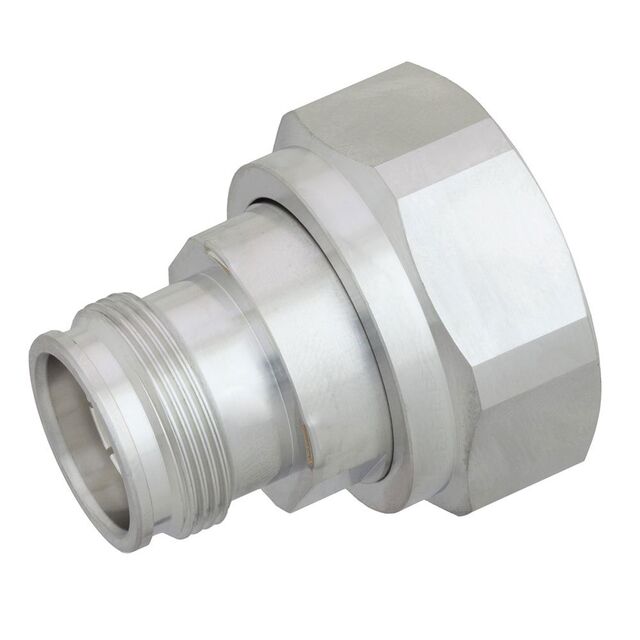

Adapter Coaxial Connector 7/16 Plug, Male Pin To 4.3/10 Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAD1100 |
|---|---|
| Adapter Series | 7/16 DIN to 4.3/10 |
| Adapter Type | Plug to Jack |
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Silver |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Male Pin, 7/16 Plug |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | 4.3/10 Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Frequency - Max | 6000 MHz |
| Impedance | 50 Ohm |
| Insertion Loss | 0.13 dB |
| Mating Cycles | 100 cycles |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -55 °C |
| Style | Straight |
