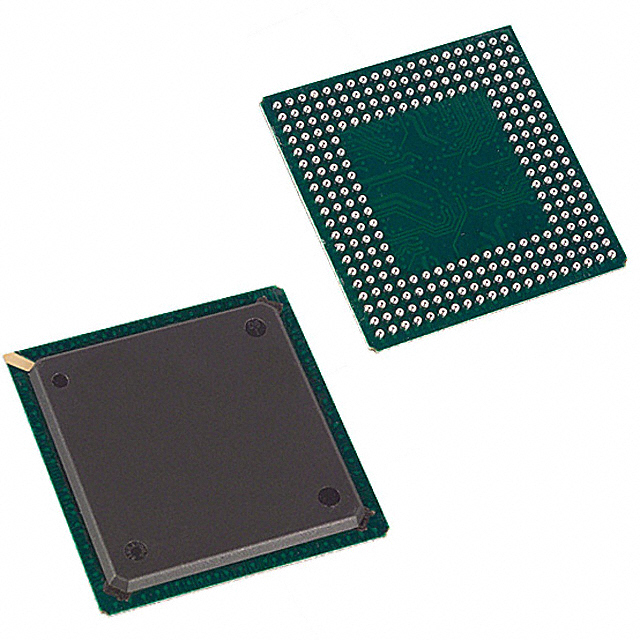

DS2070W-100#

Active

Analog Devices Inc./Maxim Integrated

IC NVSRAM 16MBIT PARALLEL 256BGA

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IC NVSRAM 16MBIT PARALLEL 256BGA

Technical Specifications

Parameters and characteristics for this part

Specification	DS2070W-100#

Access Time	100 ns
Memory Format	NVSRAM
Memory Interface	Parallel
Memory Organization	2 M
Memory Size	16 Mb
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	256-BGA
Supplier Device Package	256-BGA (27x27)
Technology	NVSRAM (Non-Volatile SRAM)
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V
Write Cycle Time - Word, Page [custom]	100 ns
Write Cycle Time - Word, Page [custom]	100 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

IC NVSRAM 16MBIT PARALLEL 256BGA

Part	Access Time	Mounting Type	Package / Case	Memory Format	Memory Organization	Operating Temperature [Max]	Operating Temperature [Min]	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Memory Type	Supplier Device Package	Memory Interface	Voltage - Supply [Max]	Voltage - Supply [Min]	Technology	Memory Size
Analog Devices Inc./Maxim Integrated DS2070W-100#	100 ns	Surface Mount	256-BGA	NVSRAM	2 M	85 °C	-40 °C	100 ns	100 ns	Non-Volatile	256-BGA (27x27)	Parallel	3.6 V	3 V	NVSRAM (Non-Volatile SRAM)	16 Mb

General part information

NVSRAM (Non-Volatile SRAM) Memory IC 16Mbit Parallel 100 ns 256-BGA (27x27)
