Description
General part information

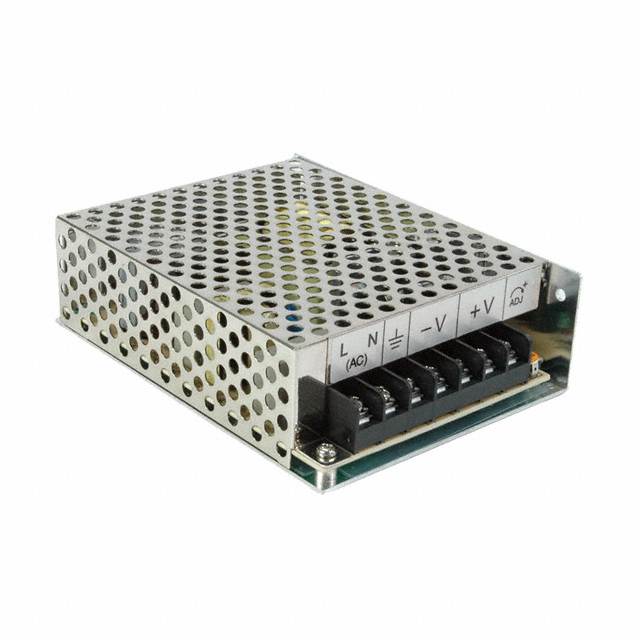

VGS-100-12
Enclosed AC DC Converters 1 Output 12V 88 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VGS-100-12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | SIQ, CB Scheme, IEC, UL, TUV, EN |
| Current - Output 1 | 8.5 A |
| Efficiency | 86 % |
| Features | DC Input Capable, Universal Input, Adjustable Output |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Power (Watts) | 100 W |
| Size / Dimension Height | 1.48 in |
| Size / Dimension Length | 5.1 in |
| Size / Dimension Width | 3.84 in |
| Standard Number | 55024, 61000-3-3, 60950-1, 61000-3-2 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 88 VAC |
| Voltage - Isolation | 4242 V |
| Voltage - Output 1 | 12 V |
