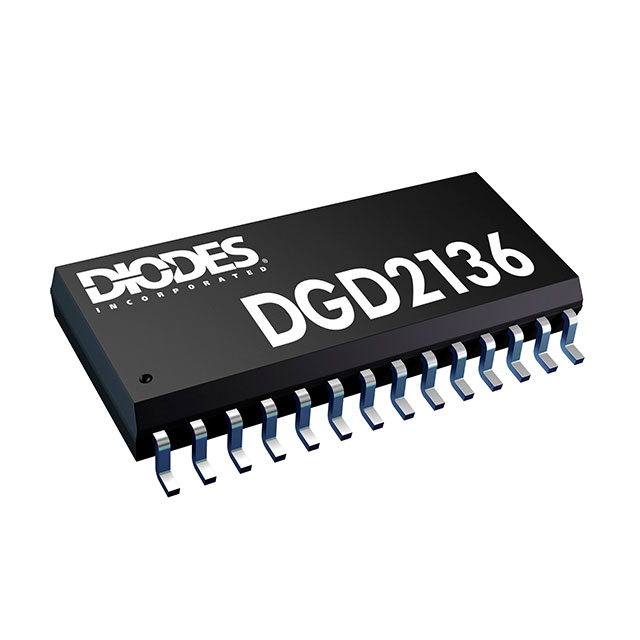

DGD2136MS28-13

Active

Diodes Inc

IC GATE DRVR HALF-BRIDGE 28SO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Recommended Soldering Techniques +1

DGD2136MS28-13

Active

Diodes Inc

IC GATE DRVR HALF-BRIDGE 28SO

Deep-Dive with AI

DocumentsDatasheet Recommended Soldering Techniques +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DGD2136MS28-13

Channel Type	3-Phase
Driven Configuration	Half-Bridge
Gate Type	N-Channel MOSFET, IGBT
High Side Voltage - Max (Bootstrap) [Max]	600 V
Input Type	Inverting
Mounting Type	Surface Mount
Number of Drivers	6
Operating Temperature	150 °C
Package / Case	28-SOIC
Package / Case [x]	0.295 in
Package / Case [y]	7.5 mm
Rise / Fall Time (Typ) [custom]	35 ns
Rise / Fall Time (Typ) [custom]	90 ns
Supplier Device Package	28-SO
Voltage - Supply [Max]	20 V
Voltage - Supply [Min]	10 VDC

DGD2136 Series

Inactive Datasheet Archive

Part	Supplier Device Package	Mounting Type	Gate Type	Input Type	Driven Configuration	Channel Type	Package / Case	Package / Case [x]	Package / Case [y]	Number of Drivers	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	High Side Voltage - Max (Bootstrap) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature
Diodes Inc DGD2136MS28-13	28-SO	Surface Mount	IGBT N-Channel MOSFET	Inverting	Half-Bridge	3-Phase	28-SOIC	0.295 in	7.5 mm	6	35 ns	90 ns	600 V	20 V	10 VDC	150 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.46
		10	$ 2.26
		25	$ 1.95
		100	$ 1.60
		250	$ 1.43
		500	$ 1.32
	Digi-Reel®	1	$ 3.46
		10	$ 2.26
		25	$ 1.95
		100	$ 1.60
		250	$ 1.43
		500	$ 1.32
	Tape & Reel (TR)	1500	$ 1.05

Description

General part information

DGD2136 Series

The DGD2136 is a three-phase gate driver IC designed for high-voltage / high-speed applications, driving N-Channel MOSFETs and IGBTs in a half-bridge configuration. High-voltage processing techniques enable the DGD2136’s high-side to switch to 600V in a bootstrap operation.
