FMCA1286-48
ActiveFairview Microwave
CBL ASSY SMAPLUG-TYPE NJACK 48
FMCA1286-48
ActiveFairview Microwave
CBL ASSY SMAPLUG-TYPE NJACK 48
Description
General part information
FMCA1286-48

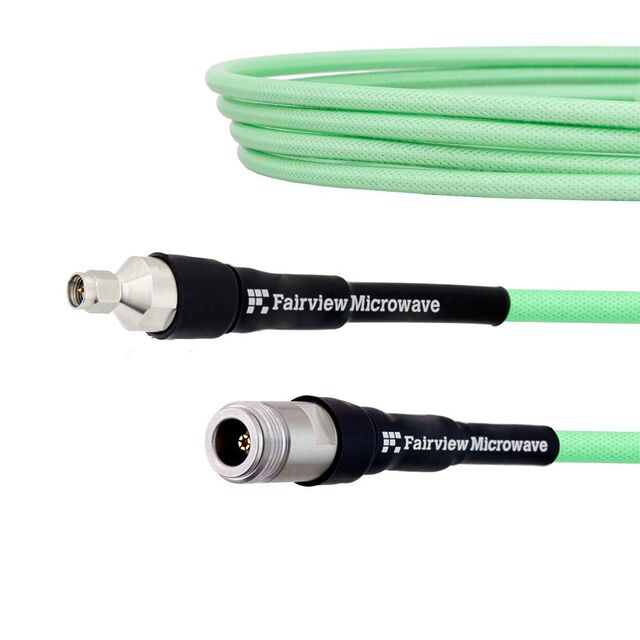

Cable Assembly Coaxial SMA to N-Type LL335i 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA1286-48 |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LL335i |
| Color | Green |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 18 GHz |
| Length | 48 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
