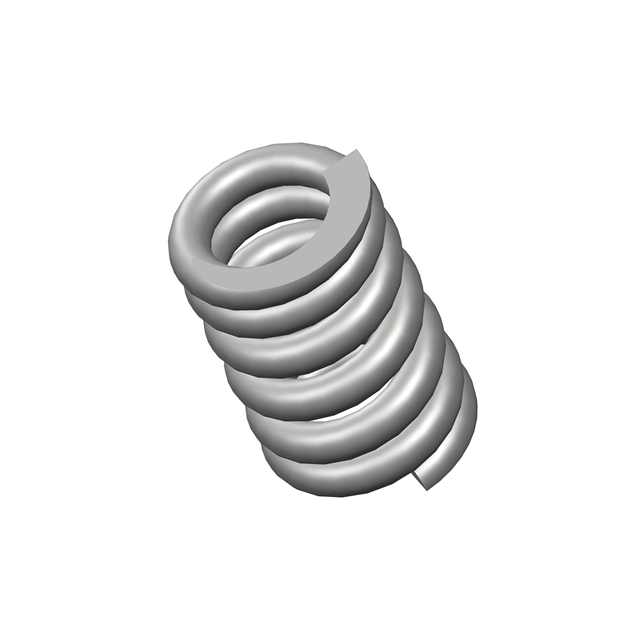

A10-46CS

Active

Century Spring Corp

COMP O= .703,L= 1.13,W= .138

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A10-46CS

Active

Century Spring Corp

COMP O= .703,L= 1.13,W= .138

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

A10 Series

COMP O= .703,L= 1.13,W= .138

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A10-46CS	A10 Series

Diameter - Inside	-	6.35 - 10.77 mm
Diameter - Inside	-	2.11 - 6.93 mm
Diameter - Inside [diameter]	0.427 in	0.042 - 0.654 in
Diameter - Inside [diameter]	10.85 mm	0.083 - 16.61 mm
Diameter - Outside	-	9.53 mm
Diameter - Outside [diameter]	17.86 mm	1.73 - 18.64 mm
Diameter - Outside [diameter]	0.703 "	0.068 - 0.734 in
End Style	Ground, Closed	Closed, Ground
Finish	Zinc	None, Zinc, Gold Iridite, Black Oxide
Free Length	1.13 in	0.25 - 1.88 in
Free Length	28.7 mm	6.35 - 47.75 mm
Load	-	0.41 - 3.4 lbs
Material	Spring Steel	Stainless Steel, Spring Steel, Music Wire, Phosphor Bronze
Rate	680 lbs/in	0.12 - 680 lbs/in
Type	-	Compression
Wire Diameter	3.51 mm	0.032 - 3.51 mm
Wire Diameter	0.138 "	0.008 - 0.138 "
Wire Diameter	-	0.3 - 1.35 mm
Wire Diameter	-	0.012 - 0.053 in
Wire Diameter	-	0.024 "
Wire Diameter	-	0.81 mm

A10 Series

COMP O= .296,L= .72,W= .016

Part	Finish	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Rate	Wire Diameter	Wire Diameter	Free Length	Free Length	End Style	Material	Wire Diameter [diameter]	Wire Diameter [diameter]	Diameter - Inside
Century Spring Corp A10-16CS	None	0.264 in	6.71 mm	0.296 in	7.52 mm	0.68 lbs/in	0.41 mm	0.016 "	18.29 mm	0.72 in	Closed	Stainless Steel
Century Spring Corp A10-46CS	Zinc	0.427 in	10.85 mm	0.703 "	17.86 mm	680 lbs/in	3.51 mm	0.138 "	28.7 mm	1.13 in	Closed, Ground	Spring Steel
Century Spring Corp A10-45CS	None	0.095 in	2.41 mm	0.125 in	3.18 mm	4.2 lbs/in			13.46 mm	0.53 in	Closed	Music Wire	0.38 mm	0.015 in
Century Spring Corp A10-14CS	None	0.147 "	3.73 mm	0.219 "	5.56 mm	66 lbs/in			14.22 mm	0.56 in	Closed	Spring Steel	0.91 mm	0.036 in
Century Spring Corp A10-29CS	None	0.398 in	10.11 mm	0.468 in	11.89 mm	3.1 lbs/in	0.89 mm	0.035 in	27.69 mm	1.09 in	Closed, Ground	Stainless Steel
Century Spring Corp A10-47CS	None	0.269 in	6.83 mm	0.343 in	8.71 mm	17 lbs/in			19.05 mm	0.75 in	Closed, Ground	Spring Steel	0.94 mm	0.037 "
Century Spring Corp A10-36CS	None	0.25 in		0.312 in	7.92 mm	18 lbs/in			11.94 mm	0.47 in	Closed, Ground	Stainless Steel	0.79 mm	0.031 in	6.35 mm
Century Spring Corp A10-66CS	Zinc	0.219 in	5.56 mm	0.343 in	8.71 mm	160 lbs/in	1.57 mm	0.062 "	21.34 mm	0.84 in	Closed, Ground	Spring Steel
Century Spring Corp A10-22CS	None	0.256 in	6.5 mm	0.296 in	7.52 mm	2.2 lbs/in	0.51 mm	0.02 "	10.41 mm	0.41 in	Closed, Ground	Music Wire
Century Spring Corp A10-18CS	None	0.167 in	4.24 mm	0.219 "	5.56 mm	27 lbs/in			7.87 mm	0.31 in	Closed, Ground	Stainless Steel	0.66 mm	0.026 in
