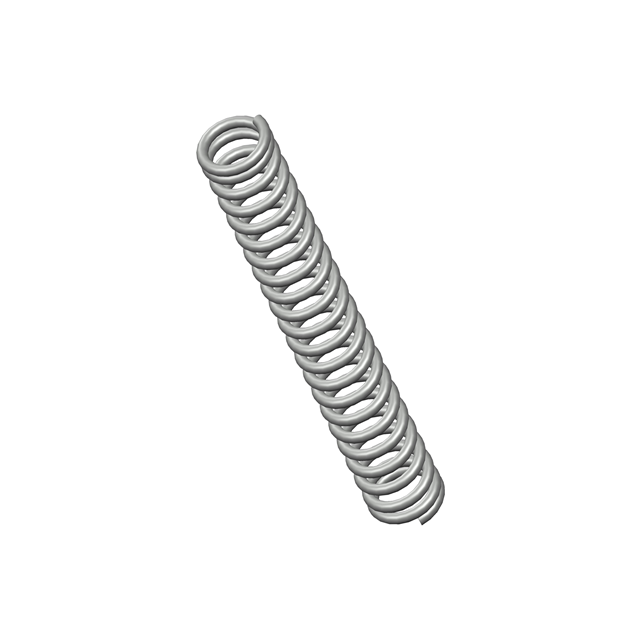

156-BCS
ActiveCentury Spring Corp
COMP O= .188,L=1.38,W=.028
156-BCS
ActiveCentury Spring Corp
COMP O= .188,L=1.38,W=.028
Description
General part information
156-BCS
COMP O= .188,L=1.38,W=.028
Technical Specifications
Parameters and characteristics for this part
| Specification | 156-BCS |
|---|---|
| Diameter - Inside | 0.132 in |
| Diameter - Outside | 0.188 in |
| End Style | Closed |
| Finish | Zinc |
| Free Length | 1.38 in |
| Material | Music Wire |
| Rate (lbs/in) | 11 lbs/in |
| Type | Compression |
| Wire Diameter | 0.028 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
