AAA3FAUZH

Active

Switchcraft Inc.

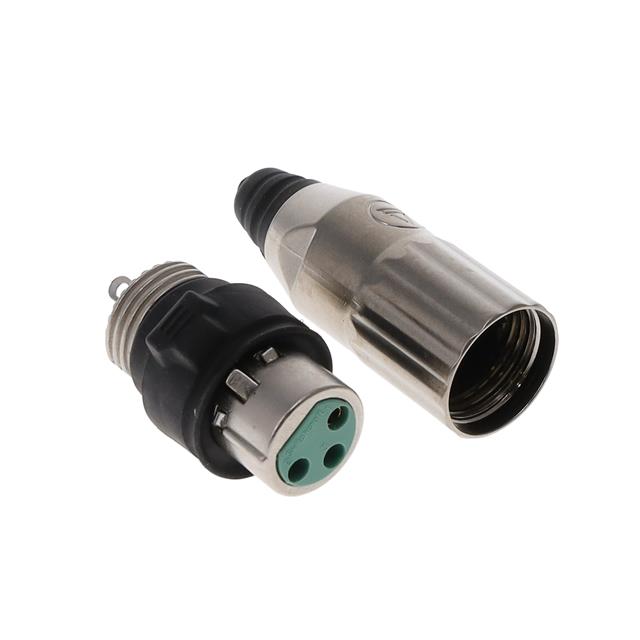

CONN PLUG FMALE XLR 3POS SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	AAA3FAUZH

Applications	Audio, Instrumentation
Backshell Material, Plating	Nickel, Zinc Alloy
Cable Opening [Max] [diameter]	7.24 mm
Cable Opening [Max] [diameter]	0.285 in
Cable Opening [Min] [diameter]	0.15 in
Cable Opening [Min] [diameter]	3.81 mm
Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Ingress Protection	IP66
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	XLR
Shielding	Shielded

CONN PLUG FMALE XLR 3POS SOLDER

Part	Features	Shell Finish	Contact Finish - Mating	Shielding	Fastening Type	Orientation	Color	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Applications	Shell Size - Insert	Ingress Protection	Backshell Material, Plating	Primary Material	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Insert Material	Mounting Type	Connector Type
Switchcraft Inc. AAA3FAUZH	Backshell, Cable Clamp, Ground, Strain Relief	Nickel	Gold	Shielded	Latch Lock	Keyed	Silver	0.15 in	3.81 mm	7.24 mm	0.285 in	Audio, Instrumentation	XLR	IP66	Nickel, Zinc Alloy	Metal	Zinc Alloy	65 °C	-40 °C	Copper Alloy	Thermoplastic	Free Hanging (In-Line)	Female Sockets, Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Solder Cup
