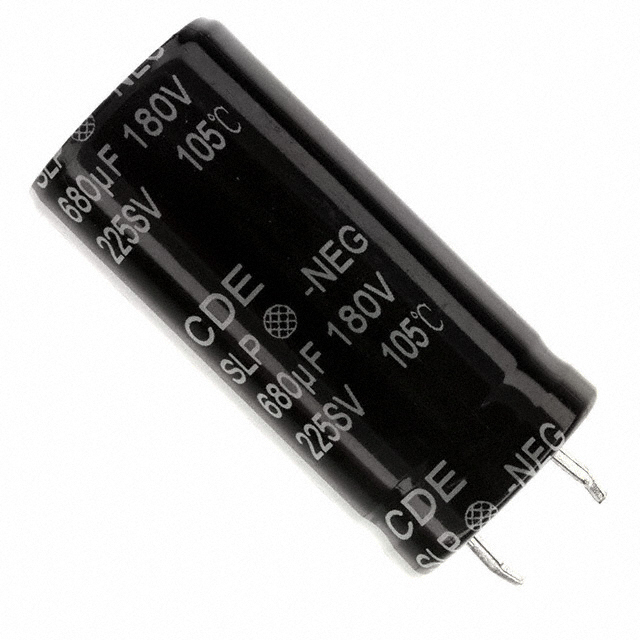

Specification	SLP681M180A4P3

Applications	General Purpose
Capacitance	680 µF
ESR (Equivalent Series Resistance)	293 mOhm
Height - Seated (Max)	1.772 in
Lead Spacing	0.394 in
Lifetime	3000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-25 °C
Package / Case	Can - Snap-In, Radial
Size / Dimension Diameter	0.866 in
Tolerance	20 %
Voltage - Rated	180 Vp-p
