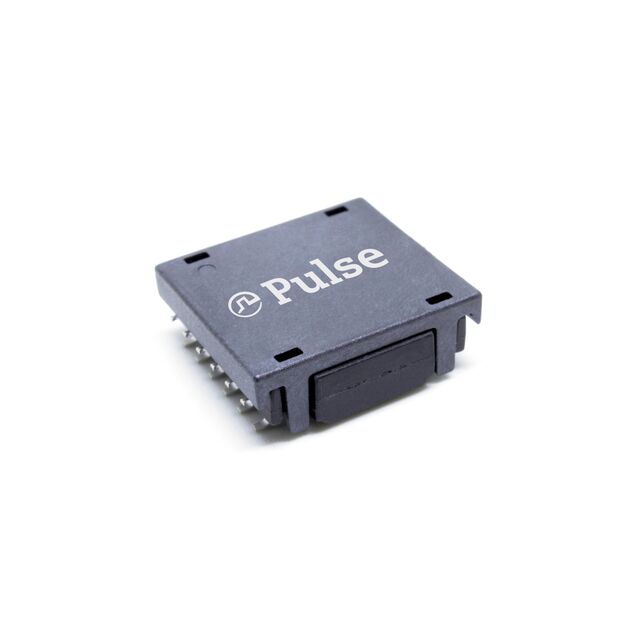

BM6230HLT
ActivePulse Electronics
XFMR PLC1:1:1 28UH REIN IN
BM6230HLT
ActivePulse Electronics
XFMR PLC1:1:1 28UH REIN IN
Description
General part information
BM6230HLT
Impedance Primary Ohms Impedance Secondary Ohms 1:1:1 Audio Transformer 3MHz ~ 30MHz Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | BM6230HLT |
|---|---|
| DC Resistance (DCR) - Primary | 250 mOhm |
| DC Resistance (DCR) - Secondary | 250 mOhm |
| Frequency Range (Max) | 30 MHz |
| Frequency Range (Min) | 3 MHz |
| Grade | Automotive |
| Height - Seated (Max) | 0.236 in |
| Inductance | 28 µH |
| Insertion Loss | 2.25 dB |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Qualification | AEC-Q200 |
| Size / Dimension Length | 0.636 in, 0.574 in |
| Size / Dimension Width | 0.583 in, 0.635 in |
| Termination Style | Gull Wing |
| Transformer Type | Line (Audio Power Distribution), Data Interface (Encapsulated), Isolation |
| Turns Ratio - Primary:Secondary | 1:1:1 |
| Voltage - Isolation | 3 kV |
