PT06P-8-4S
ActiveAmphenol Industrial Operations

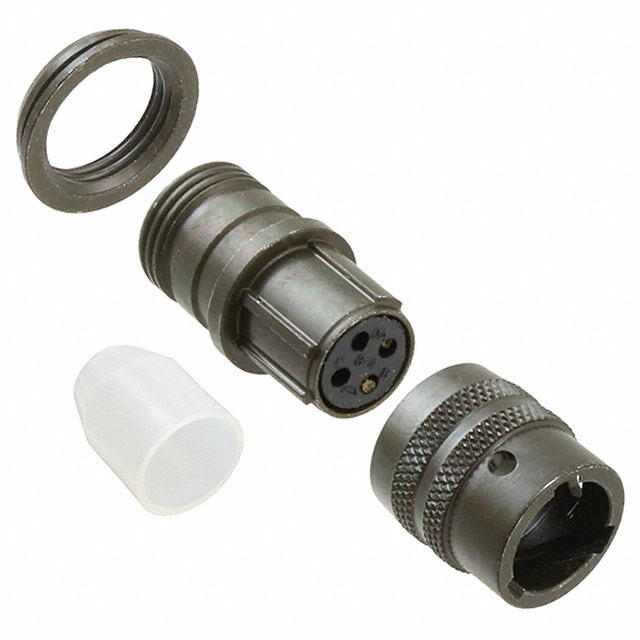

CONN PLUG FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
PT06P-8-4S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 4P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | PT06P-8-4S | PT06P Series |
|---|---|---|
| Applications | Military, Mass Transit, Instrumentation, Aerospace, Industrial | Communication Systems, Industrial, Mass Transit, Aerospace, Instrumentation, Military |
| Backshell Material, Plating | Olive Drab Cadmium, Aluminum | Olive Drab Cadmium, Aluminum, Black Zinc Cobalt |
| Color | Olive Drab | Olive Drab, Black |
| Connector Type | Female Sockets, Plug | Plug, Male Pins, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Coupling Nut, Potted | Coupling Nut, Potted |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 2 - 4 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N, W, X |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium, Black Zinc Cobalt |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert | 8-4 | 10-2, 12-3, 8-4, 8-3 |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.62 | |
| 10 | $ 25.93 | |||
| 100 | $ 23.21 | |||
PT06P Series
PT 2C 2#16 PIN PLUG
| Part | Shell Size - Insert | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Fastening Type | Insert Material | Primary Material | Shielding | Mounting Type | Contact Material | Qualification | Contact Finish - Mating | Shell Finish | Number of Positions | Shell Material | Orientation | Color | Connector Type | Backshell Material, Plating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations PT06P10-2P | 10-2 | -55 °C | 125 °C | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Bayonet Lock | Neoprene | Metal | Unshielded | Free Hanging (In-Line) | Copper Alloy | MIL-DTL-26482 Series I | Gold | Olive Drab Chromate over Cadmium | 2 | Aluminum | N | Olive Drab | Male Pins, Plug | Aluminum, Olive Drab Cadmium | |
Amphenol Industrial Operations PT06P12-3S-027 | 12-3 | -55 °C | 125 °C | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit | Bayonet Lock | Neoprene | Metal | Unshielded | Free Hanging (In-Line) | Copper Alloy | MIL-DTL-26482 Series I | Gold | Black Zinc Cobalt | Aluminum | N | Black | Female Sockets, Plug | Aluminum, Black Zinc Cobalt | ||
Amphenol Industrial Operations PT06P-8-4SW | 8-4 | -55 °C | 125 °C | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Neoprene | Metal | Unshielded | Free Hanging (In-Line) | Copper Alloy | MIL-DTL-26482 Series I | Gold | Olive Drab Chromate over Cadmium | 4 | Aluminum | W | Olive Drab | Female Sockets, Plug | Coupling Nut, Potted | |
Amphenol Industrial Operations PT06P-8-4S | 8-4 | -55 °C | 125 °C | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Neoprene | Metal | Unshielded | Free Hanging (In-Line) | Copper Alloy | MIL-DTL-26482 Series I | Gold | Olive Drab Chromate over Cadmium | 4 | Aluminum | N | Olive Drab | Female Sockets, Plug | Aluminum, Olive Drab Cadmium | Coupling Nut, Potted |
Amphenol Industrial Operations PT06P-8-3SX | 8-3 | -55 °C | 125 °C | Aerospace, Industrial, Instrumentation, Mass Transit, Military | Bayonet Lock | Neoprene | Metal | Unshielded | Free Hanging (In-Line) | Copper Alloy | MIL-DTL-26482 Series I | Gold | Olive Drab Chromate over Cadmium | Aluminum | X | Olive Drab | Female Sockets, Plug | Coupling Nut, Potted |
Description
General part information
PT06P Series
4 Position Circular Connector Plug, Female Sockets Solder Cup
