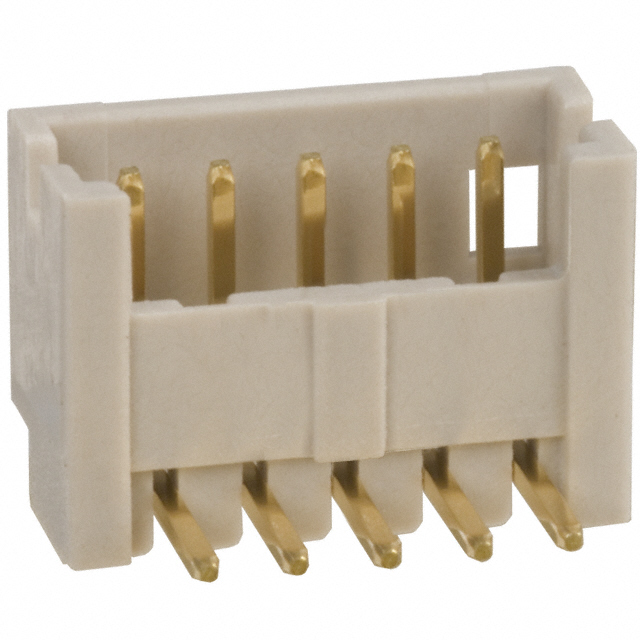

Specification	DF13-5P-1.25DS(50)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8 µin
Contact Length - Post	0.091 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	1 A
Fastening Type	Detent Lock
Insulation Color	Beige
Insulation Height	0.142 in
Insulation Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	5
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-35 °C
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	150 VDC

DF13 Series

...

Part	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Contact Length - Post	Contact Material	Insulation Material	Voltage Rating	Insulation Height	Pitch - Mating	Termination	Style	Contact Finish - Mating	Number of Positions Loaded	Insulation Color	Fastening Type	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Type	Number of Rows	Shrouding	Contact Finish - Post	Current Rating	Contact Shape	Connector Type	Mounting Type	Mated Stacking Height	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Termination	Pin or Socket	Current Rating (Per Contact)	Features	Contact Finish Thickness - Post
Hirose Electric Co Ltd DF13-15P-1.25DSA	85 °C	-35 °C	15	0.091 in	Brass	Nylon Polyamide (PA)	150 VDC	0.169 in	0.049 in	Solder	Board Cable/Wire	Tin	All	Beige	Detent Lock	39.4 µin	UL94 V-0	Male Pin	1	Shrouded - 4 Wall	Tin	1 A	Square	Header	Through Hole	5.3 mm
Hirose Electric Co Ltd DF13-2630SCFA(44)																											26 AWG	30 AWG	Crimp	Socket
Hirose Electric Co Ltd DF13-3P-1.25DSA(50)	85 °C	-35 °C	3	0.091 in	Brass	Nylon Polyamide (PA)	150 VDC	0.169 in	0.049 in	Solder	Board Cable/Wire	Gold	All	Beige	Detent Lock	8 µin	UL94 V-0	Male Pin	1	Shrouded - 4 Wall		1 A	Square	Header	Through Hole	5.3 mm
Hirose Electric Co Ltd DF13-14P-1.25DSA(25)	85 °C	-35 °C	14	0.091 in	Brass	Nylon Polyamide (PA)	150 VDC	0.169 in	0.049 in	Solder	Board Cable/Wire	Tin	All	Beige	Detent Lock		UL94 V-0	Male Pin	1	Shrouded - 4 Wall	Tin		Square	Header	Through Hole						1 A
Hirose Electric Co Ltd DF13-9P-1.25H(21)	85 °C	-35 °C	9		Brass	Nylon Polyamide (PA)	150 VDC	0.142 in	0.049 in	Solder	Board Cable/Wire	Tin	All	Beige	Detent Lock		UL94 V-0	Male Pin	1	Shrouded - 4 Wall	Tin	1 A	Square	Header	Right Angle Surface Mount							Board Guide Solder Retention
Hirose Electric Co Ltd DF13-8P-1.25H(21)	85 °C	-35 °C	8		Brass	Nylon Polyamide (PA)	150 VDC	0.142 in	0.049 in	Solder	Board Cable/Wire	Tin	All	Beige	Detent Lock		UL94 V-0	Male Pin	1	Shrouded - 4 Wall	Tin	1 A	Square	Header	Right Angle Surface Mount							Board Guide Solder Retention
Hirose Electric Co Ltd DF13-9P-1.25H(51)	85 °C	-35 °C	9		Brass	Nylon Polyamide (PA)	150 VDC	0.142 in	0.049 in	Solder	Board Cable/Wire	Gold	All	Beige	Detent Lock	8 µin	UL94 V-0	Male Pin	1	Shrouded - 4 Wall		1 A	Square	Header	Right Angle Surface Mount							Board Guide Solder Retention
Hirose Electric Co Ltd DF13-13P-1.25DSA(20)	85 °C	-35 °C	13	0.091 in	Brass	Nylon Polyamide (PA)	150 VDC	0.169 in	0.049 in	Solder	Board Cable/Wire	Tin	All	Beige	Detent Lock	39.4 µin	UL94 V-0	Male Pin	1	Shrouded - 4 Wall	Tin	1 A	Square	Header	Through Hole	5.3 mm
Hirose Electric Co Ltd DF13-2P-1.25DSA(50)	85 °C	-35 °C	2	0.091 in	Brass	Nylon Polyamide (PA)	150 VDC	0.169 in	0.049 in	Solder	Board Cable/Wire	Gold	All	Beige	Detent Lock	8 µin	UL94 V-0	Male Pin	1	Shrouded - 4 Wall		1 A	Square	Header	Through Hole	5.3 mm
Hirose Electric Co Ltd DF13-8P-1.25DSA(75)	85 °C	-35 °C	8	0.091 in	Brass	Nylon Polyamide (PA)	150 VDC	0.169 in	0.049 in	Solder	Board Cable/Wire	Tin	All	Beige	Detent Lock	39.4 µin	UL94 V-0	Male Pin	1	Shrouded - 4 Wall	Tin	1 A	Square	Header	Through Hole								39.4 µin
