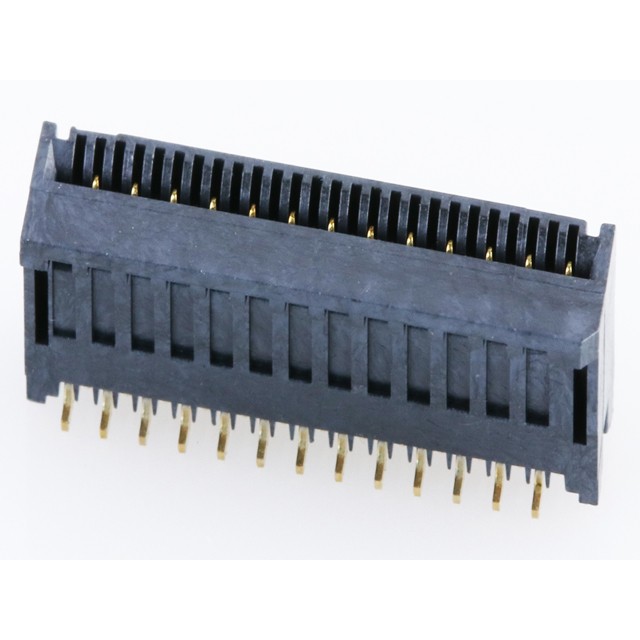

Specification	0781272620

Cable End Type	Tapered
Connector/Contact Type	Contacts, 1 Sided, Vertical
Contact Finish	Gold
Contact Finish Thickness	3.94 µin
Contact Material	Phosphor Bronze
Current Rating	0.5 A
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FFC, FPC
Height Above Board	0.161 in
Housing Color	Black
Housing Material	Glass Filled, LCP, Liquid Crystal Polymer
Material Flammability Rating	UL94 V-0
Mating Cycles	10 cycles
Mounting Type	Surface Mount
Number of Positions	26
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Pitch	0.02 in
Termination	Solder
Voltage Rating	50 V

078127 Series

Part	Housing Color	Current Rating (Per Contact)	Mating Cycles	Contact Finish Thickness	Cable End Type	Contact Finish	Flat Flex Type	Number of Positions	Height Above Board	Voltage Rating	Connector/Contact Type	Material Flammability Rating	Termination	Pitch	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	FFC, FCB Thickness	Contact Material	Housing Material	Current Rating
Molex 0781271158	Natural	500 mA	20 cycles	3.94 µin	Tapered	Gold	FFC FPC	15	0.161 in	50 V	1 Sided Contacts Vertical	UL94 V-0	Solder	0.02 in	-40 °C	85 °C	Surface Mount	0.3 mm	Copper Alloy	Glass Filled Nylon 4/6 PA46 Polyamide
Molex 0781271178	Natural		20 cycles	3.94 µin	Tapered	Gold	FFC FPC	17	0.161 in	50 V	1 Sided Contacts Vertical	UL94 V-0	Solder	0.02 in	-40 °C	85 °C	Surface Mount	0.3 mm	Copper Alloy	Glass Filled Nylon 4/6 PA46 Polyamide	0.5 A
Molex 0781271210	Black		10 cycles	39.4 Ąin	Tapered	Tin Bismuth	FFC FPC	12	0.161 in	50 V	1 Sided Contacts Vertical	UL94 V-0	Solder	0.02 in	-40 °C	85 °C	Surface Mount	0.3 mm	Phosphor Bronze	Glass Filled LCP Liquid Crystal Polymer	0.5 A
Molex 0781271349	Natural		20 cycles	39.4 Ąin	Tapered	Tin Bismuth	FFC FPC	34	0.161 in	50 V	1 Sided Contacts Vertical	UL94 V-0	Solder	0.02 in	-40 °C	85 °C	Surface Mount	0.3 mm	Copper Alloy	Glass Filled Nylon 4/6 PA46 Polyamide	0.5 A
Molex 0781271179	Natural		20 cycles	39.4 Ąin	Tapered	Tin Bismuth	FFC FPC	17	0.161 in	50 V	1 Sided Contacts Vertical	UL94 V-0	Solder	0.02 in	-40 °C	85 °C	Surface Mount	0.3 mm	Copper Alloy	Glass Filled Nylon 4/6 PA46 Polyamide	0.5 A
Molex 0781272320	Black	500 mA	10 cycles	3.94 µin	Tapered	Gold	FFC FPC	23	0.161 in	50 V	1 Sided Contacts Vertical	UL94 V-0	Solder	0.02 in	-40 °C	85 °C	Surface Mount	0.3 mm	Phosphor Bronze	LCP Liquid Crystal Polymer
Molex 0781272720	Black		10 cycles	3.94 µin	Tapered	Gold	FFC FPC	27	0.161 in	50 V	1 Sided Contacts Vertical	UL94 V-0	Solder	0.02 in	-40 °C	85 °C	Surface Mount	0.3 mm	Phosphor Bronze	LCP Liquid Crystal Polymer	0.5 A
Molex 0781278620
Molex 0781272410	Black		10 cycles	39.4 Ąin	Tapered	Tin Bismuth	FFC FPC	24 pos	0.161 in	50 V	1 Sided Contacts Vertical	UL94 V-0	Solder	0.02 in	-40 °C	85 °C	Surface Mount	0.3 mm	Phosphor Bronze	Glass Filled LCP Liquid Crystal Polymer	0.5 A
Molex 0781271159	Natural		20 cycles	39.4 Ąin	Tapered	Tin Bismuth	FFC FPC	15	0.161 in	50 V	1 Sided Contacts Vertical	UL94 V-0	Solder	0.02 in	-40 °C	85 °C	Surface Mount	0.3 mm	Copper Alloy	Glass Filled Nylon 4/6 PA46 Polyamide	0.5 A
