9620 060100
ActiveBelden Inc.

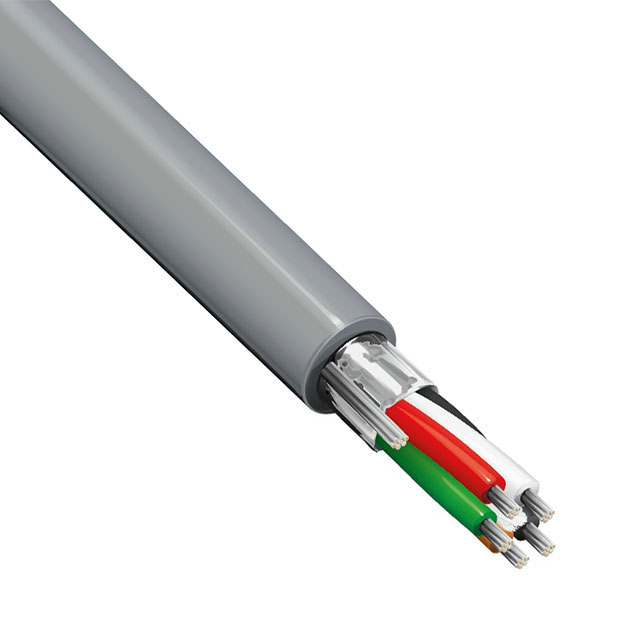

CABLE 5COND 16AWG CHROME
Deep-Dive with AI
Search across all available documentation for this part.
9620 060100
ActiveBelden Inc.
CABLE 5COND 16AWG CHROME
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9620 060100 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 19 Strands |
| Conductor Strand [custom] | 29 AWG |
| Jacket (Insulation) Diameter [diameter] | 10.44 mm |
| Jacket (Insulation) Diameter [diameter] | 0.411 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 1.067 mm |
| Jacket (Insulation) Thickness | 0.042 in |
| Jacket Color | Chrome |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Number of Conductors | 5 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Usage | Audio, Instrumentation, Control |
| Wire Gauge | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 100 | $ 7.17 | |
| 200 | $ 6.81 | |||
| 300 | $ 6.61 | |||
| 500 | $ 6.36 | |||
| 700 | $ 6.21 | |||
| 1000 | $ 6.04 | |||
Description
General part information
9620 Series
5 Conductor Multi-Conductor Cable Chrome 16 AWG 100.0' (30.5m)
