2901363

Active

Phoenix Contact

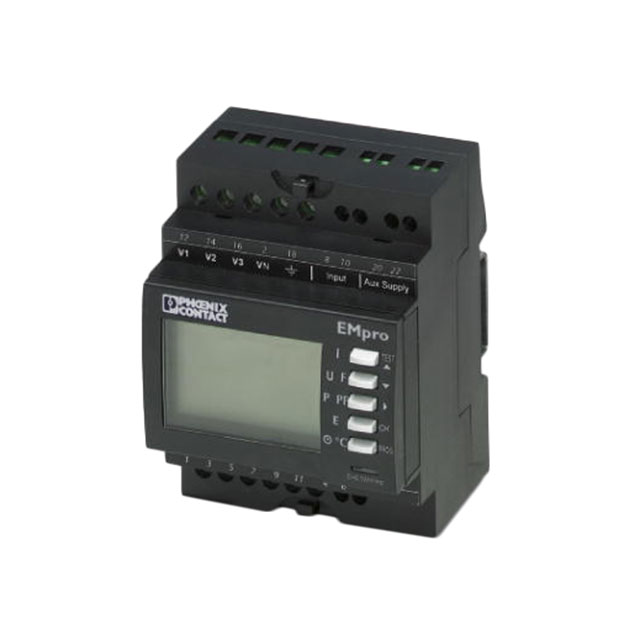

POWER METER LCD DIN RAIL

Search across all available documentation for this part.

Documents2901363

Active

Phoenix Contact

POWER METER LCD DIN RAIL

Documents2901363

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2901363	29013 Series

Display Type	LCD - Black Characters	LCD - Black Characters, Backlight, LCD - Black Characters
Ingress Protection	IP51 - Dust Protected	IP51 - Dust Protected
Measuring Range [Max]	519 VAC, 9999 A	500 - 9999 VAC
Measuring Range [Min]	0 A, 28 VAC	0 - 28 A
Measuring Type	Current (3-Phase), Wattage, Voltage	Current (3-Phase), Wattage, Voltage
Mounting Type	DIN Rail	DIN Rail
Operating Temperature [Max] [custom]	55 °C	55 °C
Operating Temperature [Min] [custom]	-10 °C	-10 °C
Output Type	Solid State, Option Cards Available	Solid State, Option Cards Available, Solid State
Panel Cutout Dimensions	-	92 mm
Panel Cutout Dimensions	-	92 mm
Termination Style	Screw Terminal	Screw Terminal
Type	Energy Monitor	Energy Monitor
Voltage - Supply [Max]	277 VAC/DC	240 - 400 VAC
Voltage - Supply [Min]	110 VAC	110 - 120 VAC
Weight	312.07 g	1.8 - 400.07 g
Weight	0.688 lb	0.688 - 0.882 lb
Weight	-	816.5 g

POWER METER LCD PANEL MOUNT

Part	Termination Style	Weight	Weight	Measuring Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Measuring Range [Min]	Measuring Range [Max]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Display Type	Weight	Output Type	Mounting Type	Ingress Protection
Phoenix Contact 2901364	Screw Terminal	0.882 lb	400.07 g	Current (3-Phase), Voltage, Wattage	110 VAC	400 VAC	Energy Monitor	0 A, 28 VAC	500 VAC, 9999 A	55 °C	-10 °C	92 mm	92 mm	LCD - Black Characters, Backlight
Phoenix Contact 2901366	Screw Terminal		1.8 lbs	Current (3-Phase), Voltage, Wattage	110 VDC, 120 V	240 VDC, 250 V	Energy Monitor	0 A, 11 VAC	700 VAC, 9999 A	55 °C	-10 °C	92 mm	92 mm	LCD - Black Characters, Backlight	816.5 g
Phoenix Contact 2901363	Screw Terminal	0.688 lb	312.07 g	Current (3-Phase), Voltage, Wattage	110 VAC	277 VAC/DC	Energy Monitor	0 A, 28 VAC	519 VAC, 9999 A	55 °C	-10 °C			LCD - Black Characters		Solid State, Option Cards Available	DIN Rail	IP51 - Dust Protected
Phoenix Contact 2901362	Screw Terminal			Current (3-Phase), Voltage, Wattage	110 VAC	277 VAC/DC	Energy Monitor	0 A, 28 VAC	519 VAC, 9999 A	55 °C	-10 °C			LCD - Black Characters		Solid State	DIN Rail	IP51 - Dust Protected

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Energy Monitor LCD - Black Characters Display DIN Rail
