1-1418778-1

Active

TE Connectivity AMP Connectors

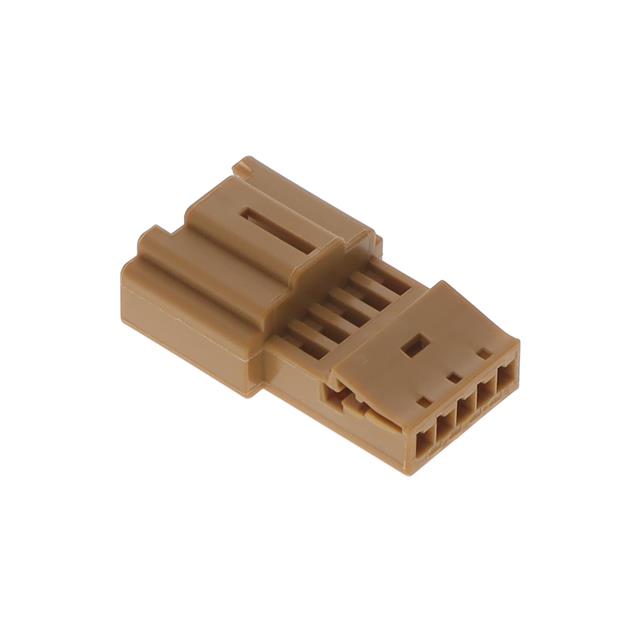

5POSN. MQS PIN HOUSING

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

5POSN. MQS PIN HOUSING

Technical Specifications

Parameters and characteristics for this part

Specification	1-1418778-1

Color	Brown
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Rows	1
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in

5POSN. MQS PIN HOUSING

Part	Contact Type	Color	Contact Termination	Insulation Material	Pitch [x]	Pitch [x]	Connector Type	Mounting Type	Number of Rows	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity AMP Connectors 1-1418778-1	Male Pin	Brown	Crimp	Polybutylene Terephthalate (PBT), Glass Filled	2.54 mm	0.1 in	Plug	Free Hanging (In-Line)	1	Latch Holder	-40 °C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Rectangular Connectors - Housings Plug Brown 0.100" (2.54mm)
